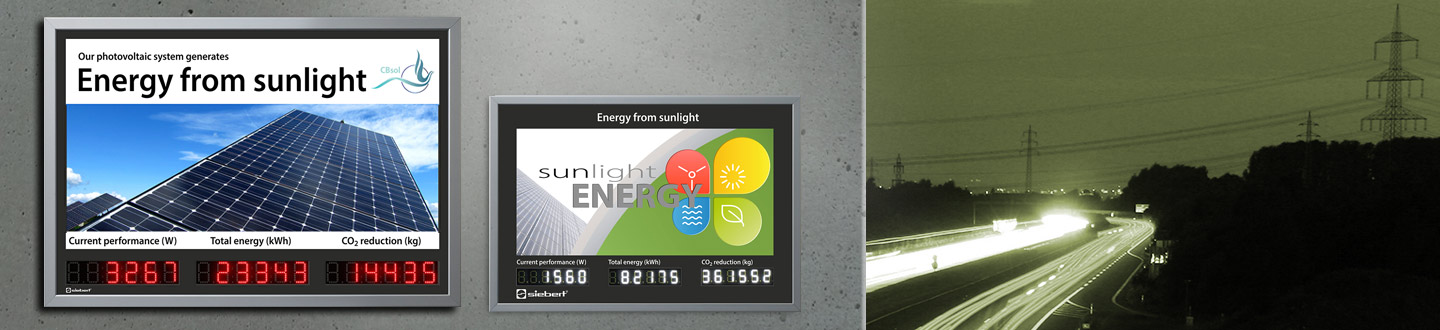

Digital displays with backlit graphics

The devices with backlit graphics awake special attention. A homogeneous backlighting sets your graphics perfectly in scene, even in poor lighting conditions.

Backlit graphics

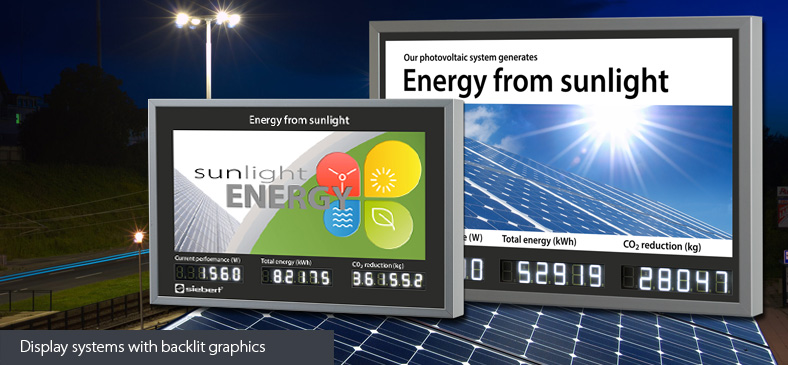

With exclusive design, bright shining LED digits in modern SMD technology and effectively backlit graphic design the devices of the XC445/XC455 series awake the interest of the audience. A homogeneous backlighting sets your graphics perfectly in scene, even in poor lighting conditions.

Reading distances

The XC445 series has 25 mm high LED digits and allows reading distances up to 10 m. The XC455 series has 55 mm high digits; they are still readable from a distance of 20 m, but achieve even with a smaller viewing distance and in the outdoor application, a higher grade of attention.

Individuality as standard

Our own design studio designs the graphics individually in direct consultation with the customer. The large surface provides plenty of scope for design. It’s also possible to integrate a logo of the investor, the planner, the sponsors or a photo of the building into the graphics.

Examples

Series XC445

Series XC455

Labeling variants

You can choose between six labeling variants.

Bez.

EN1

EN2

EN3

EN4

EN5

EN6

Line 1

Current performance in W

Current performance in kW

Current performance in W

Current performance in kW

Current performance in kW

Current performance in kW

Line 2

Total energy in kWh

Total energy in MWh

Daily energy in kWh

Daily energy in kWh

Total energy in kWh

Daily energy in kWh

Line 3

CO₂ reduction in kg

CO₂ reduction in t

Total energy in kWh

Total energy in MWh

CO₂ reduction in kg

Total energy in kWh



  • Type code
  • LED display character height
  • LED color
  • Measures W x H x D
  • Material

  • Power supply
  • Protection type
  • Weight
  • Individual foil design

  • XC445-SAW-N-04
  • 25 mm
  • white
  • 650 x 450 x 88 mm
  • aluminum,
    front acrylic glass
  • 100...240V AC, 50...60Hz
  • IP40 (IP54)
  • approx. 10 kg
  • inclusive

  • XC455-SAW-N-04
  • 55 mm
  • white
  • 1150 x 800 x 88 mm
  • aluminum,
    front acrylic glass
  • 100...240V AC, 50...60Hz
  • IP54 (IP65)
  • approx. 27 kg
  • inclusive

Values in ( ) brackets are valid for devices with optional equipment package for outdoor use.

Data interface

  • S0 pulse, Serial RS485, USB-C, Bluetooth
  • Ethernet
  • WLAN Bridge   Logo Wifi



  • XC445-xxx-x-04

  • XC445-xxx-x-05
  • XC445-xxx-x-xx-18x1



  • XC455-xxx-x-04

  • XC455-xxx-x-05
  • XC455-xxx-x-xx-18x1

LED color

  • red
  • white



  • XC445-xxR-x-xx
  • XC445-xxW-x-xx



  • XC455-xxR-x-xx
  • XC455-xxW-x-xx

Options

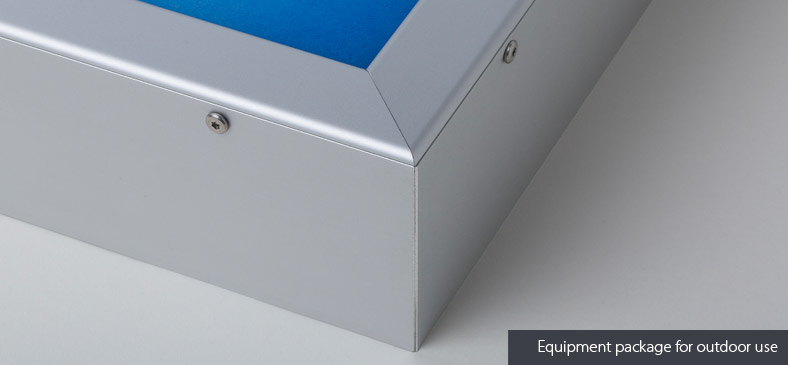

  • Equipment package for outdoor use
  • WLAN Bridge with multiple receivers
  • Individual foil design



  • XC445-xxx-A-xx

  • XC445-xxx-x-xx-18xx

  • XC445-xxx-x-xx-S99xxx



  • XC455-xxx-A-xx

  • XC455-xxx-x-xx-18xx

  • XC455-xxx-x-xx-S99xxx
