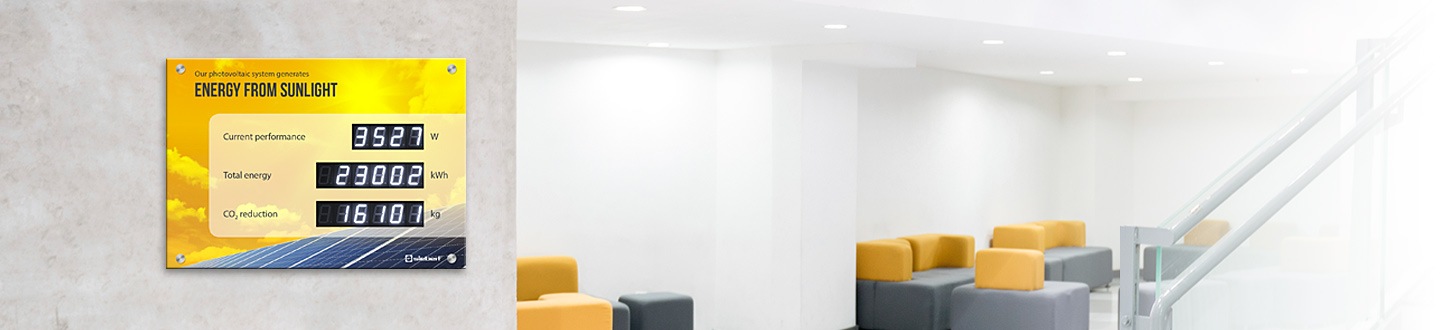

Series XC410

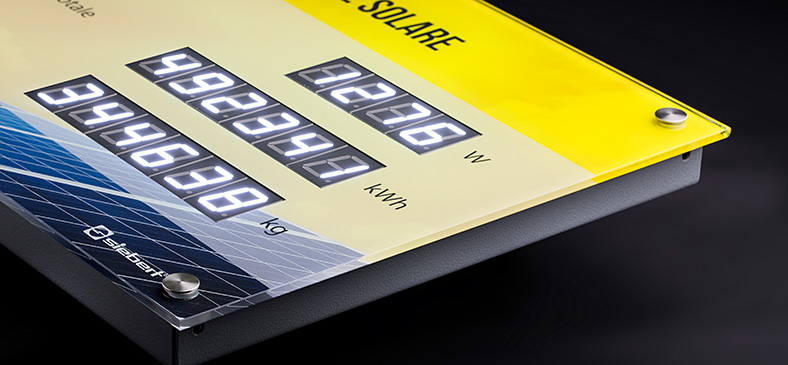

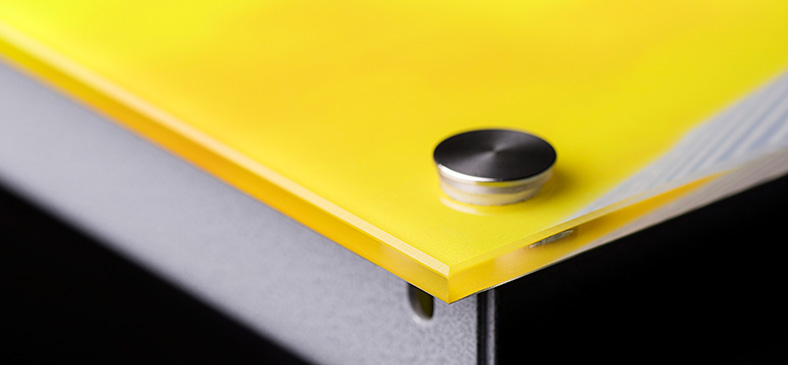

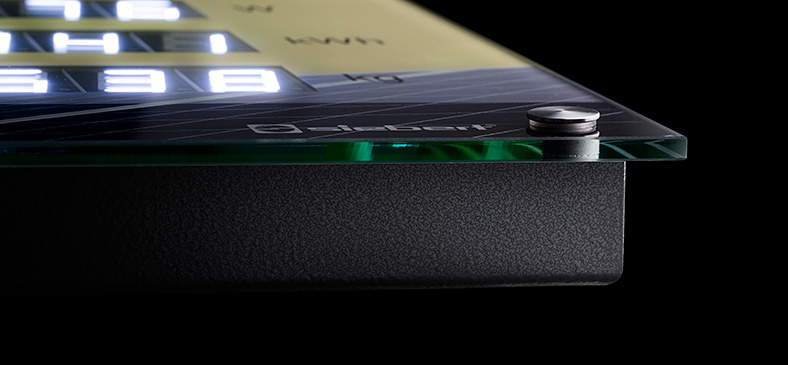

Elegance in glass and stainless steel

The displays of the XC410 series are representative objects with a clear design language. Glass and stainless steel emphasize the high standard. The frameless and flat design, together with white LEDs, gives off a special elegance.

Design

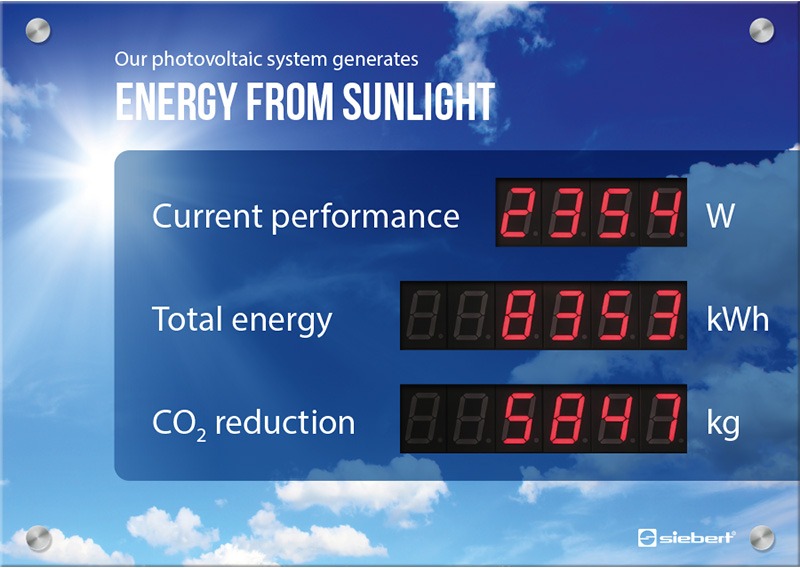

ST1

ST1

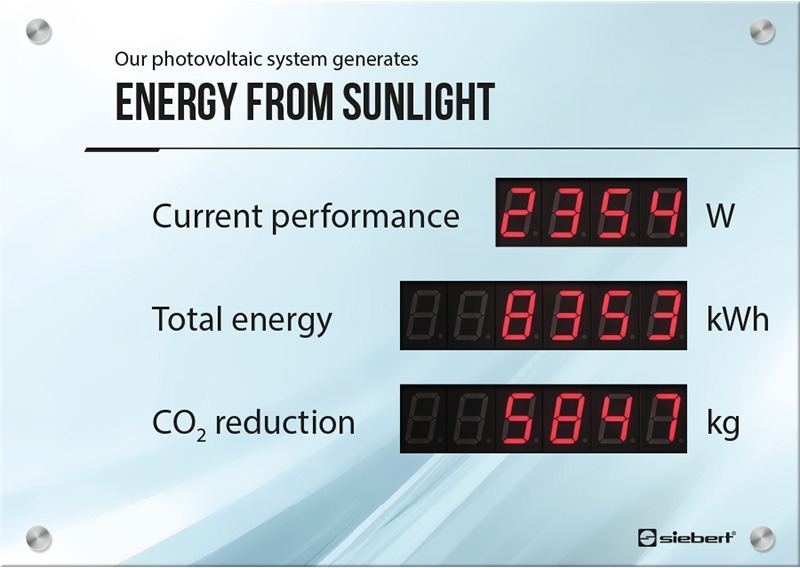

ST2

ST2

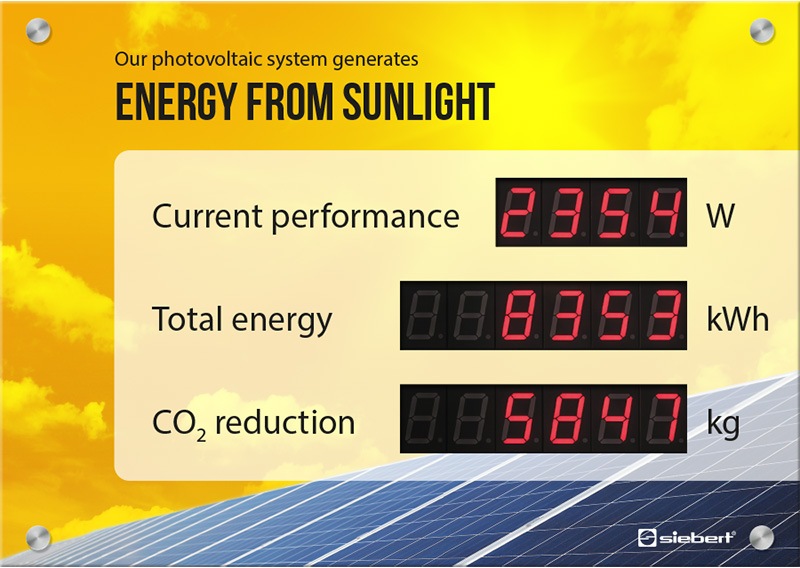

ST3

ST3

Graphic design

Different graphic designs

It’s also possible to integrate a logo of the investor, the planner, the sponsors or a photo of the building into the graphics.
Individually designed graphics are also possible. For this, our own design studio is your competent partner.

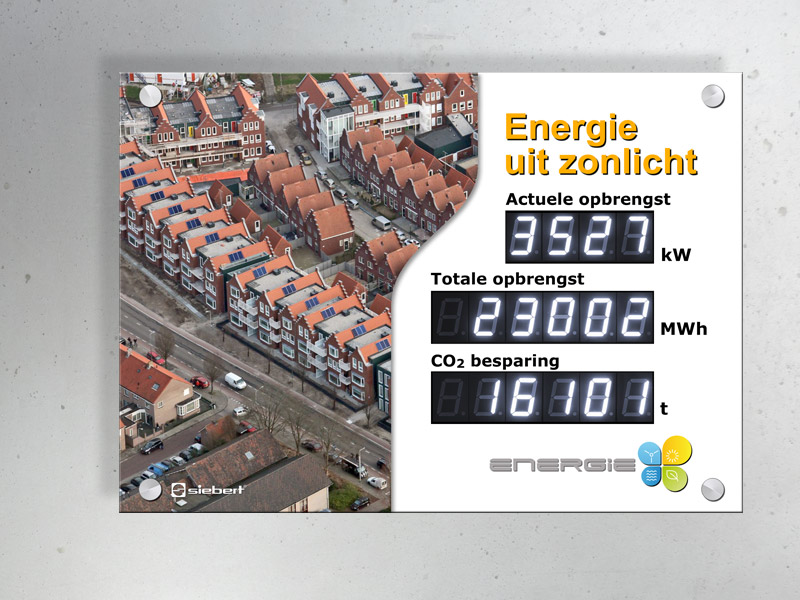

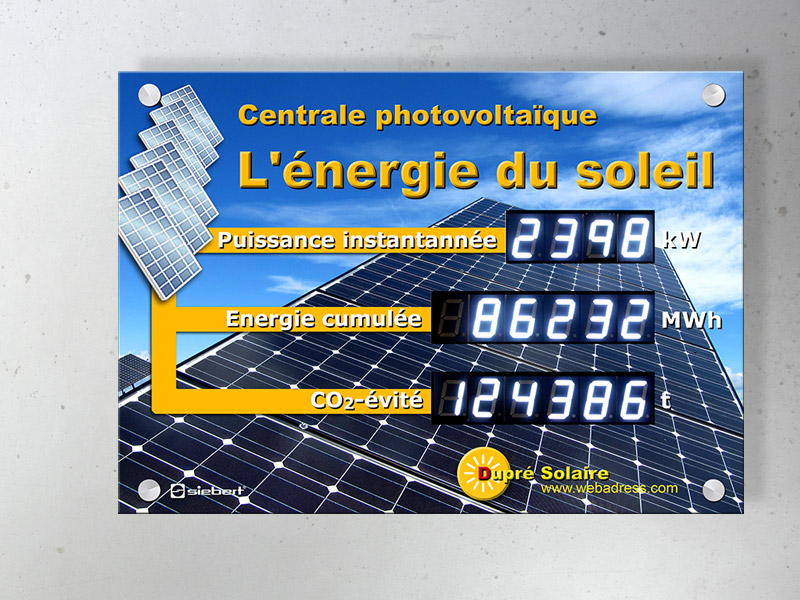

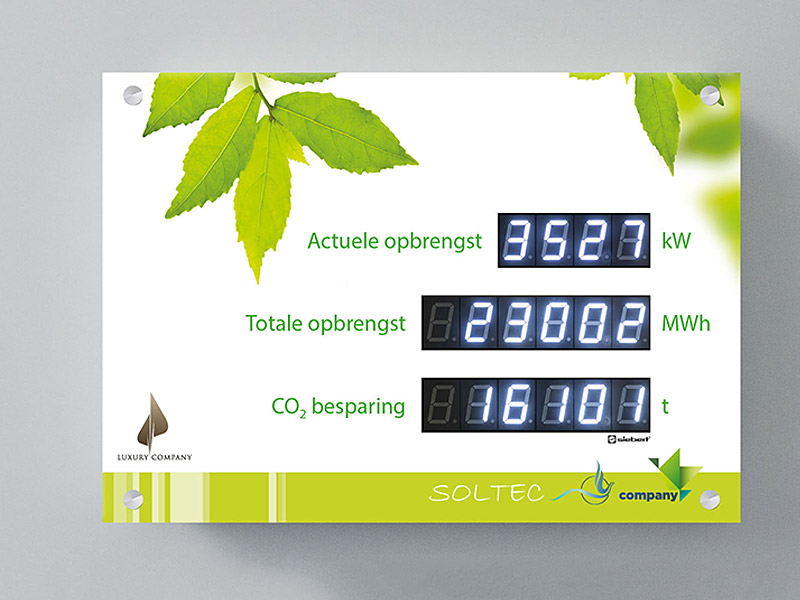

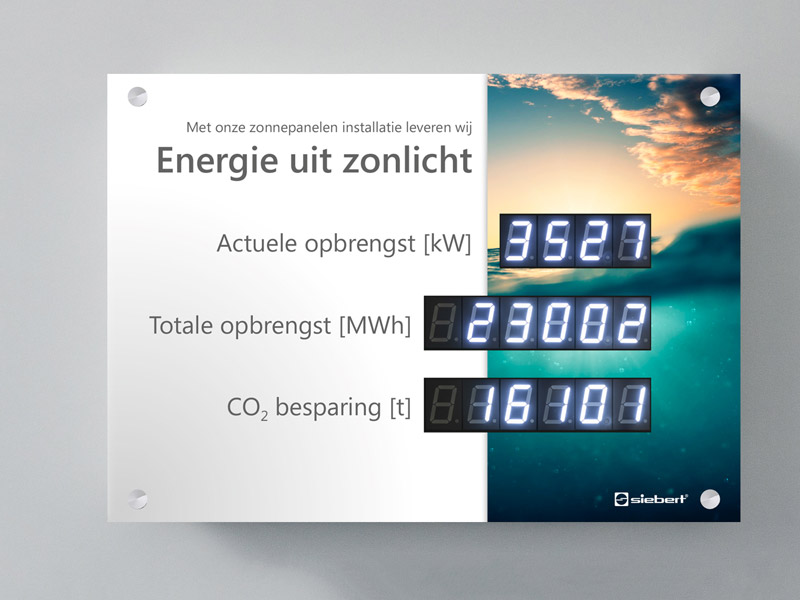

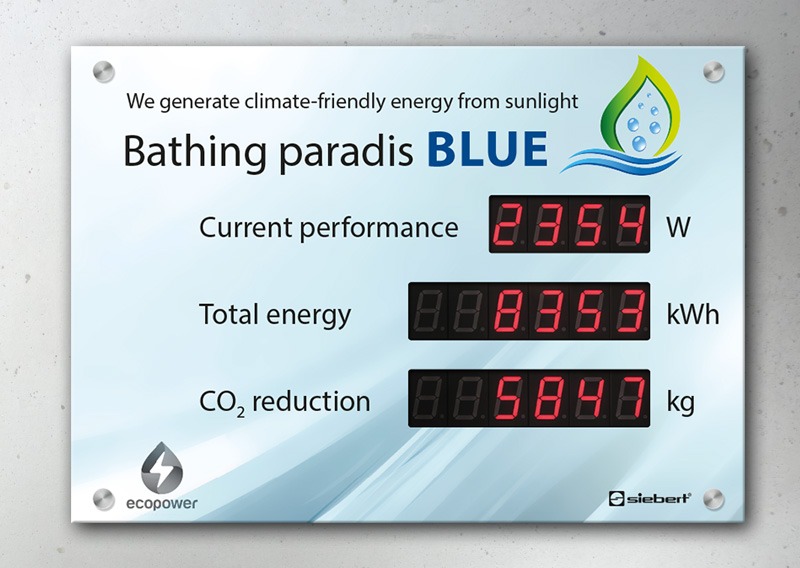

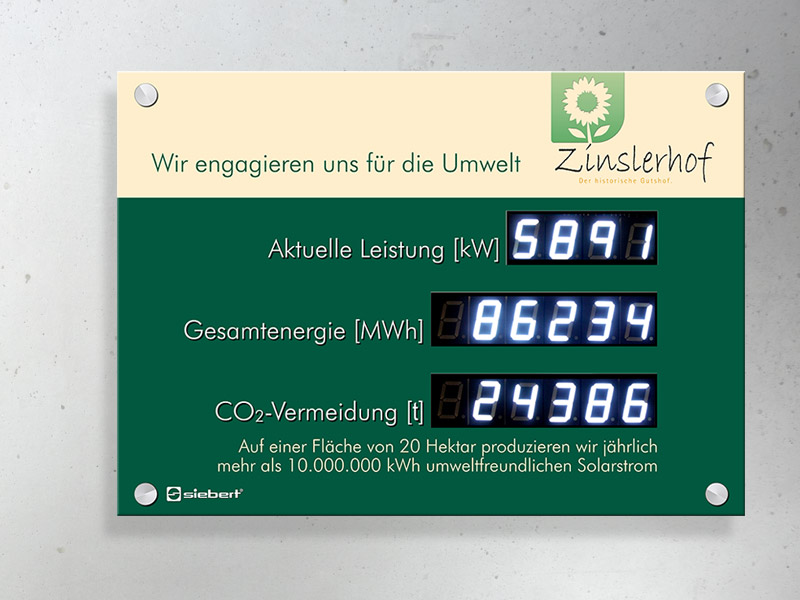

Examples



Labeling variants

You can choose between six labeling variants.

Bez.

EN1

EN2

EN3

EN4

EN5

EN6

Line 1

Current performance in W

Current performance in kW

Current performance in W

Current performance in kW

Current performance in kW

Current performance in kW

Line 2

Total energy in kWh

Total energy in MWh

Daily energy in kWh

Daily energy in kWh

Total energy in kWh

Daily energy in kWh

Line 3

CO₂ reduction in kg

CO₂ reduction in t

Total energy in kWh

Total energy in MWh

CO₂ reduction in kg

Total energy in kWh



  • Type code
  • LED display character height
  • LED color
  • Upper LED display
  • Middle LED display
  • Lower LED display
  • Measures W x H x D
  • Material
  •
  • Power supply
  • Power consumption
  • Protection type
  • Weight

  • XC410-SAR-N-03
  • 25 mm
  • red
  • 4 digits
  • 6 digits
  • 6 digits
  • 420 x 297 x 33 (41) mm
  • glas/stainless steel, body steel sheet varnished
  • 100...240V AC, 50...60Hz
  • 25W max.
  • IP40
  • approx. 4 kg

Values in ( ) are valid for devices with Ethernet- or WLAN interface.

Data interface

  • S0 pulse, Serial RS485, USB-C
  • Ethernet
  • WLAN Bridge   Logo Wifi



  • XC410-xxx-x-03
  • XC410-xxx-x-05
  • XC410-xxx-x-xx-18x1

LED color

  • red
  • white



  • XC410-xxR-x-xx
  • XC410-xxW-x-xx

Options

  • WLAN Bridge with multiple receivers
  • Individual foil design



  • XC410-xxx-N-xx-18xx
  • XC410-xxx-x-xx-S99xxx
