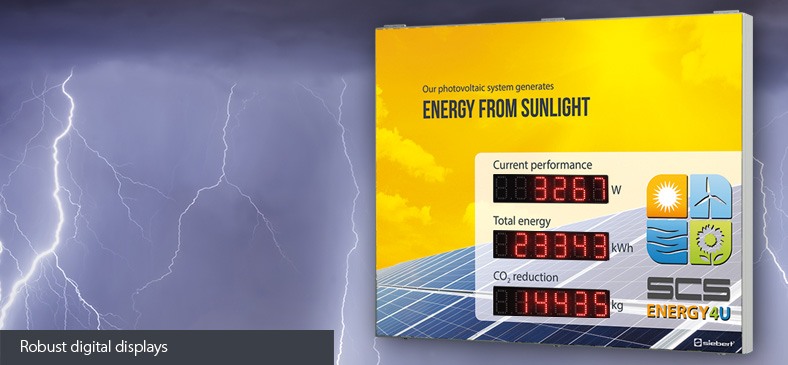

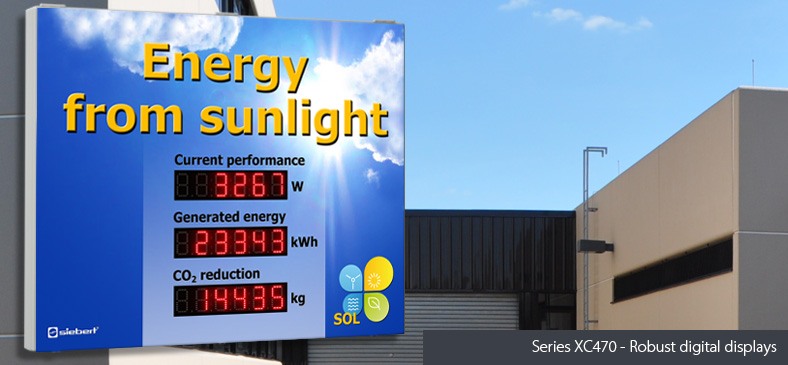

Robust housings for public areas

The digital displays of the XC470 series are especially suitable for sites in public areas or in harsh environments. Their robust steel sheet housings offer a wide protection against external influences on the display.

Super bright LED display

An innovative feature is the LED display in modern SMD technology. With white luminous digits, an elegant typeface and extremely high brightness, they define a new standard. The super bright digits are very well readable in the sunlight. An automatic brightness control optimally adjusts the brightness to the ambient light.


The XC470 series uses 55 mm high digits. They are readable up to a distance of 20 m but achieve, even with a smaller viewing distance and in the outdoor application, a higher grade of attention.


Design

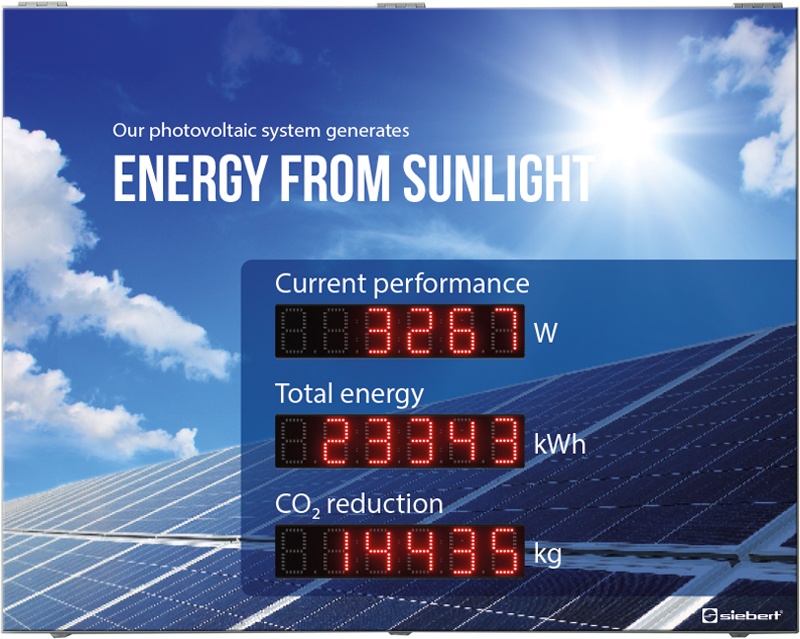

ST1

ST1

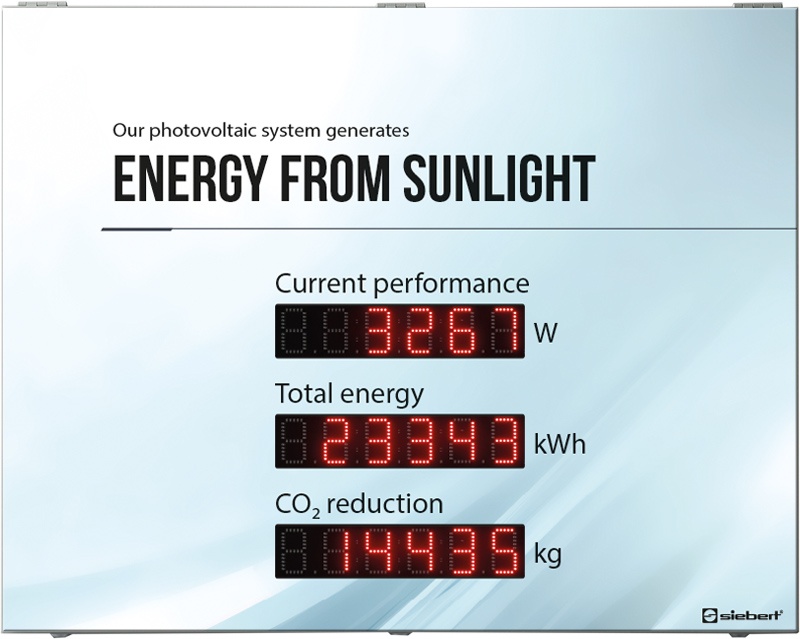

ST2

ST2

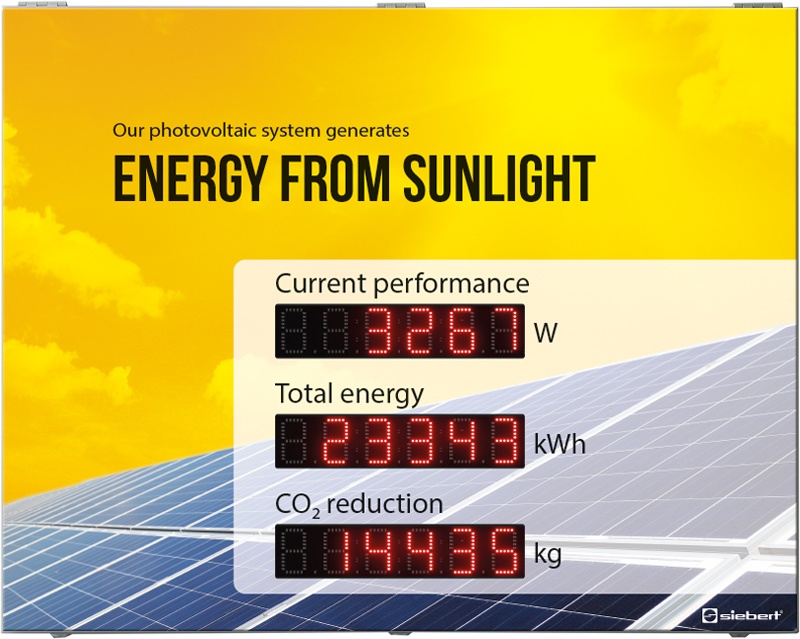

ST3

ST3


Graphic design

Different graphic designs

It’s also possible to integrate a logo of the investor, the planner, the sponsors or a photo of the building into the graphics.
Individually designed graphics are also possible. For this, our own design studio is your competent partner.

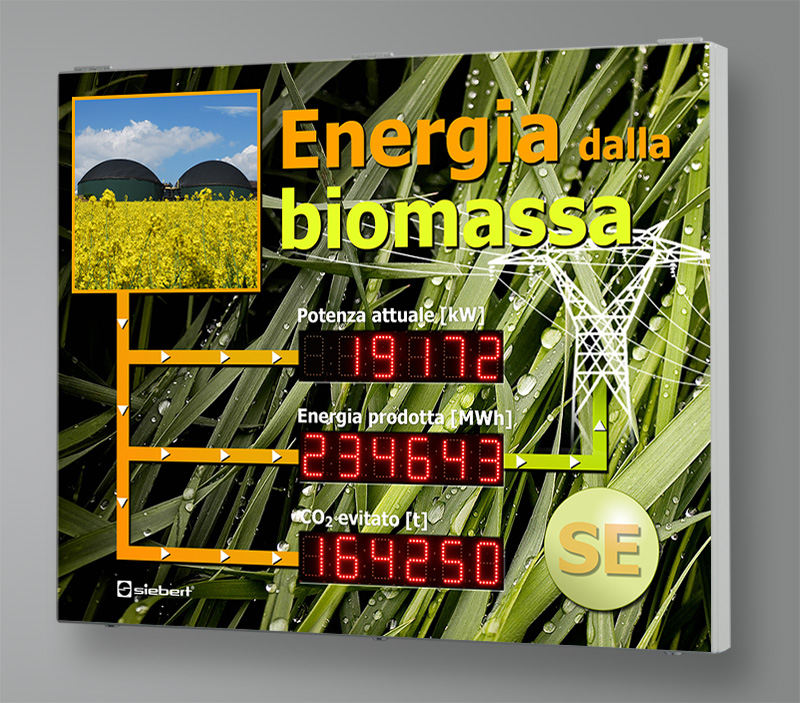

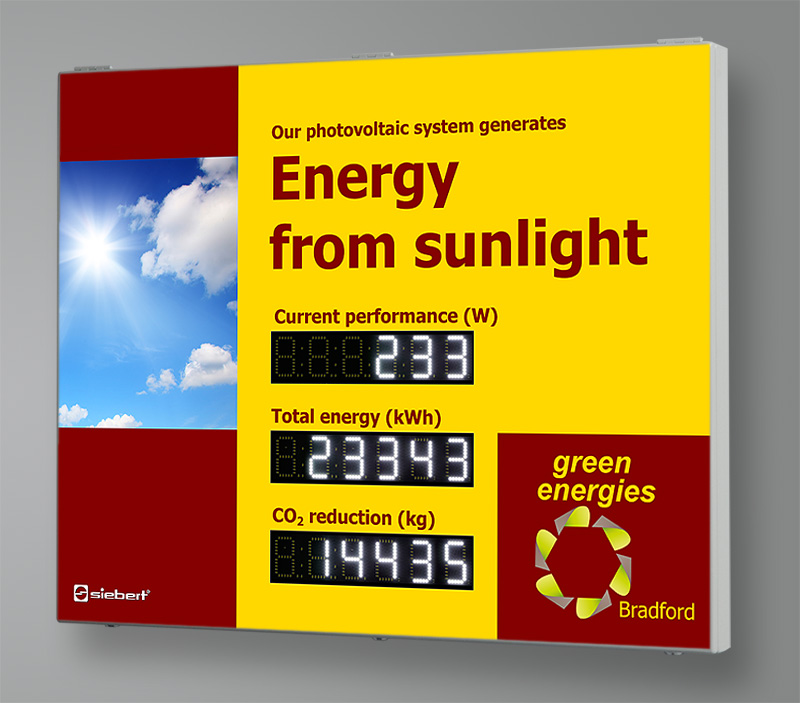

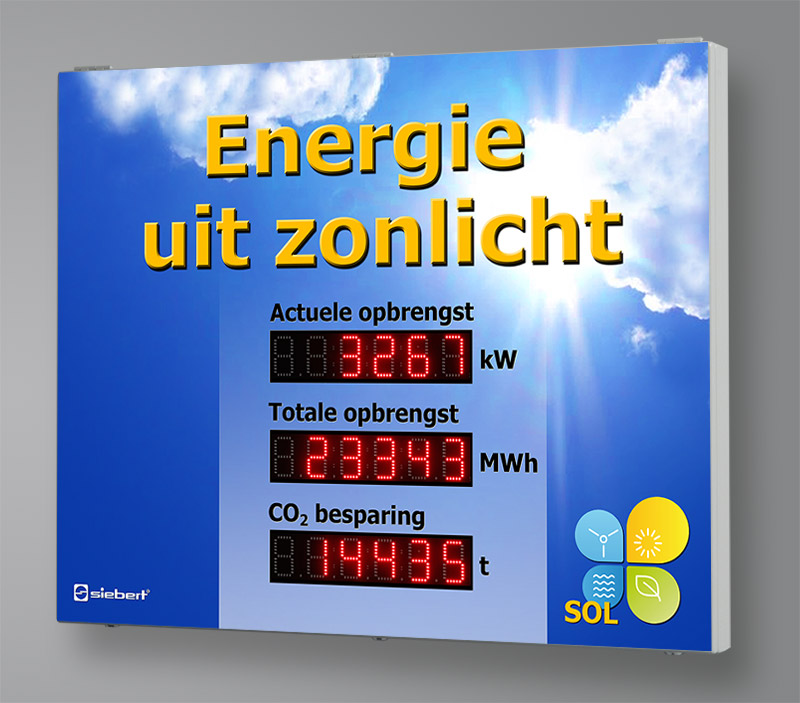

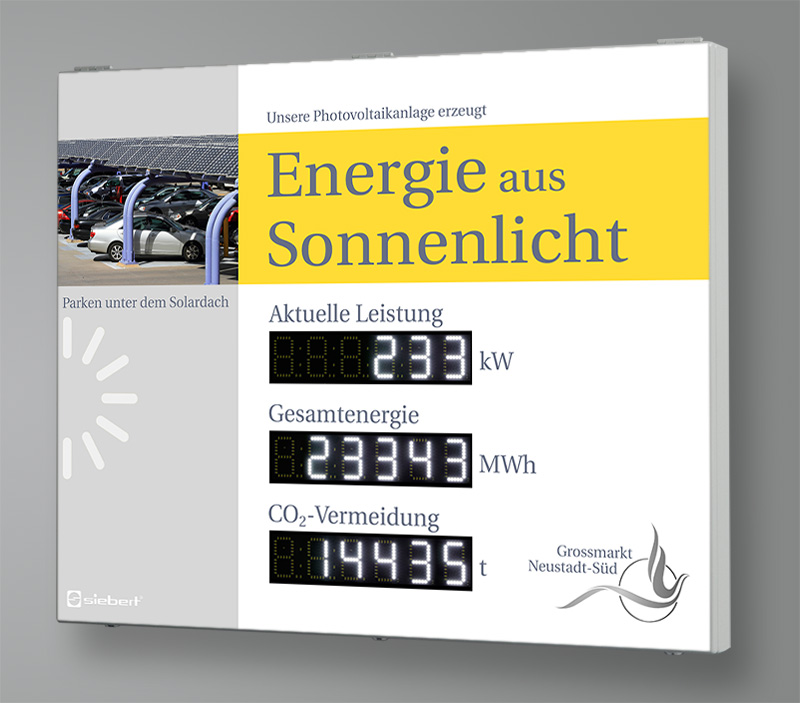

Examples



Labeling variants

You can choose between six labeling variants.

Bez.

EN1

EN2

EN3

EN4

EN5

EN6

Line 1

Current performance in W

Current performance in kW

Current performance in W

Current performance in kW

Current performance in kW

Current performance in kW

Line 2

Total energy in kWh

Total energy in MWh

Daily energy in kWh

Daily energy in kWh

Total energy in kWh

Daily energy in kWh

Line 3

CO₂ reduction in kg

CO₂ reduction in t

Total energy in kWh

Total energy in MWh

CO₂ reduction in kg

Total energy in kWh



  • Type code
  • LED display character height
  • LED color
  • LED display
  • Measures W x H x D
  • Material

  • Power supply
  • Protection type
  • Weight

  • XC470-SBR-N-04
  • 55 mm
  • red
  • 3 x 6 digits
  • 1000 x 800 x 70 mm

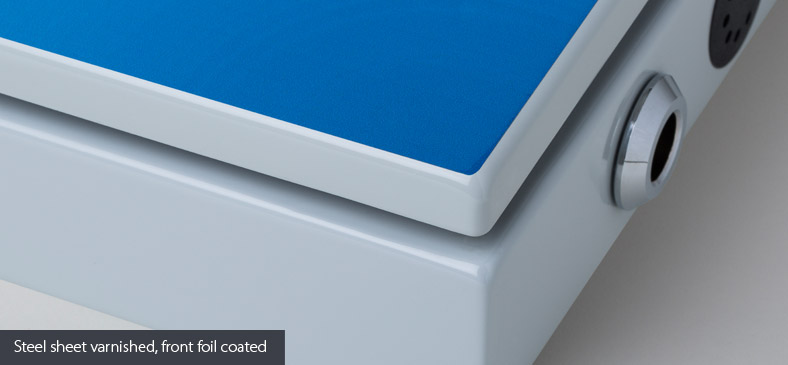

  • steel sheet varnished,
    front film coated
  • 100...240V AC, 50...60Hz
  • IP54 (IP65)
  • approx. 32 kg

Values in ( ) brackets are valid for devices with optional equipment package for outdoor use.

Data interface

  • S0 pulse, Serial RS485, USB-C, Bluetooth
  • Ethernet
  • WLAN Bridge   Logo Wifi



  • XC470-xxx-x-04
  • XC470-xxx-x-05
  • XC470-xxx-x-xx-18x1

LED color

  • red
  • white



  • XC470-xxR-x-xx
  • XC470-xxW-x-xx

Options

  • Equipment package for outdoor use
  • WLAN Bridge with multiple receivers
  • Individual foil design



  • XC470-xxx-A-xx
  • XC470-xxx-x-xx-18xx
  • XC470-xxx-x-xx-S99xxx
