Series XC420

Compact digital displays with innovative technology

A special feature of the XC420 series is the compact design: with a housing, even smaller than the size of a sheet A3 format, it finds the right place everywhere.

Innovative technology

Control is possible via the digital interface of the inverter or a data logger, as well as with the pulses of an electric meter. Despite the power supply unit integrated in the display the dimensions of the display are very compact.

Suitable for outdoor use

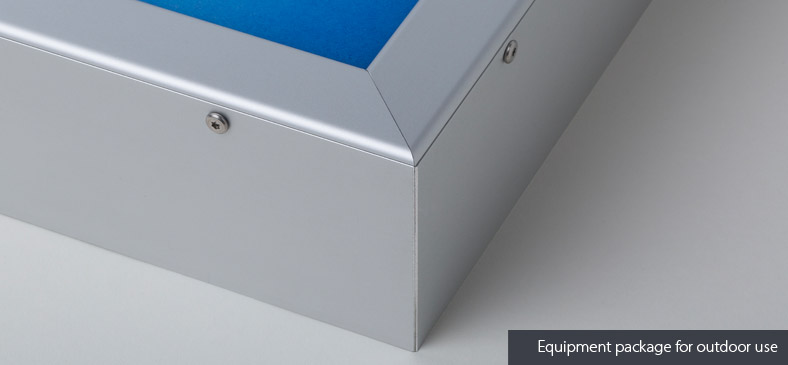

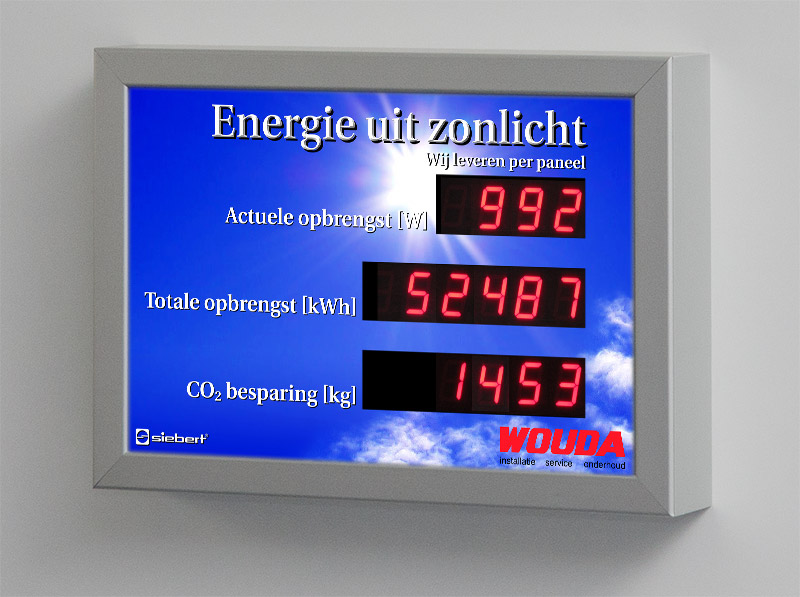

Devices which are used outdoors have screwed housing frames and offer protection against vandalism.

Design

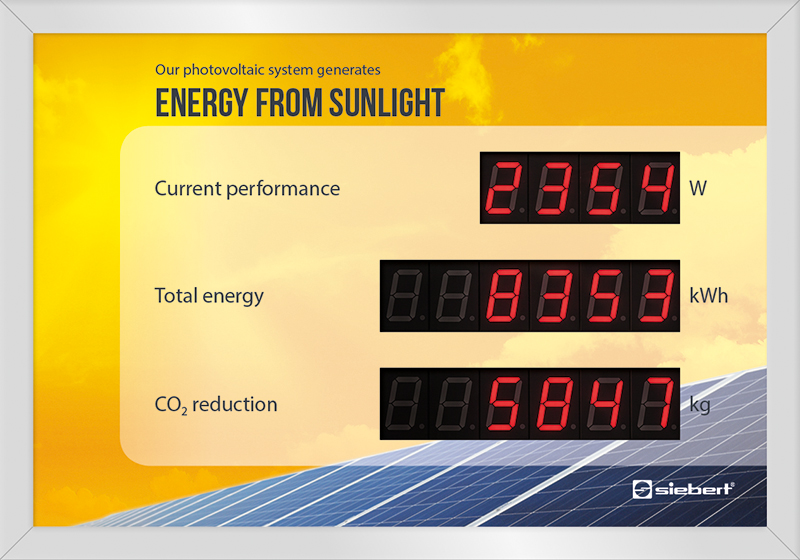

ST1

ST1

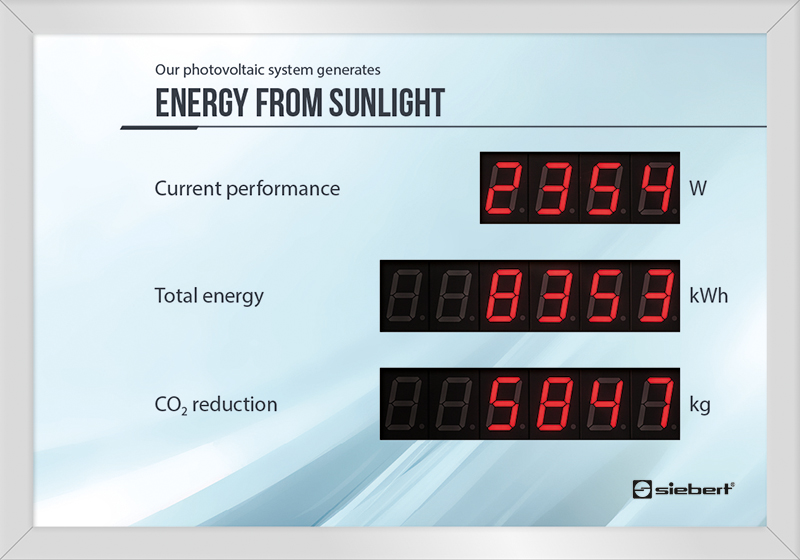

ST2

ST2

ST3

ST3

Graphic design

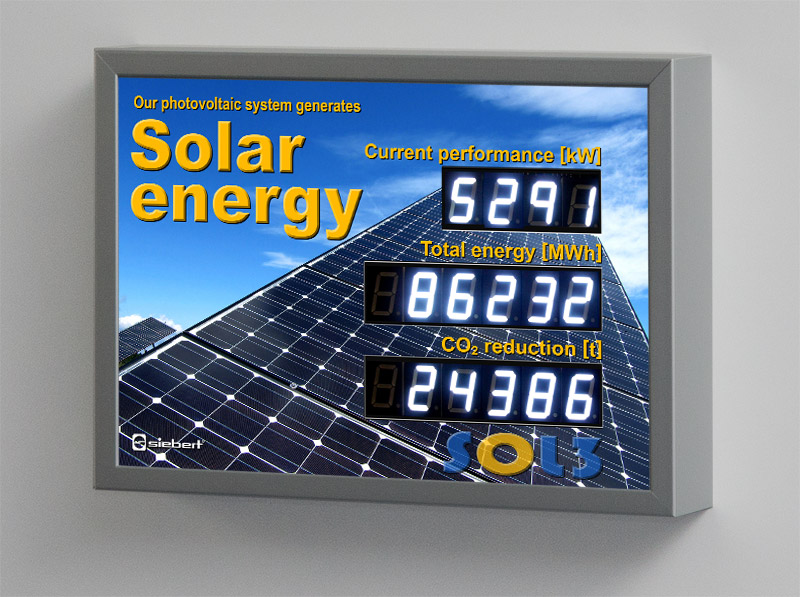

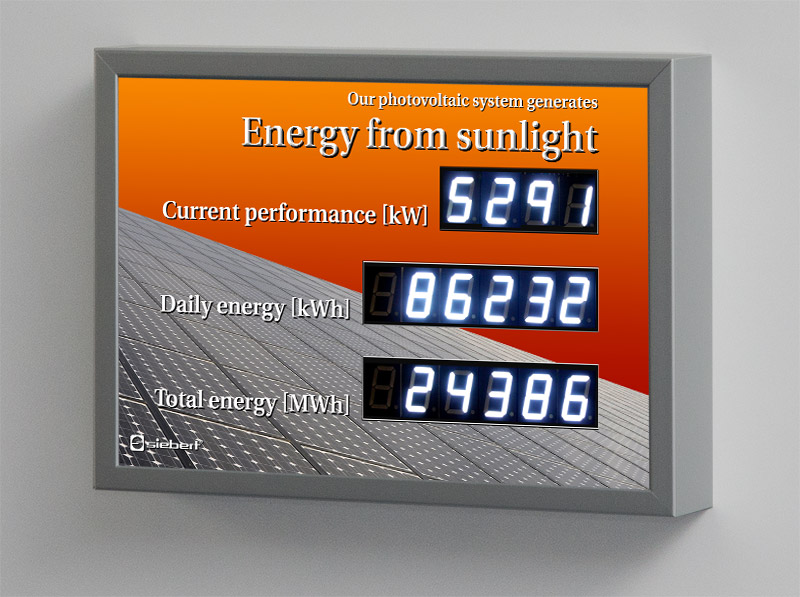

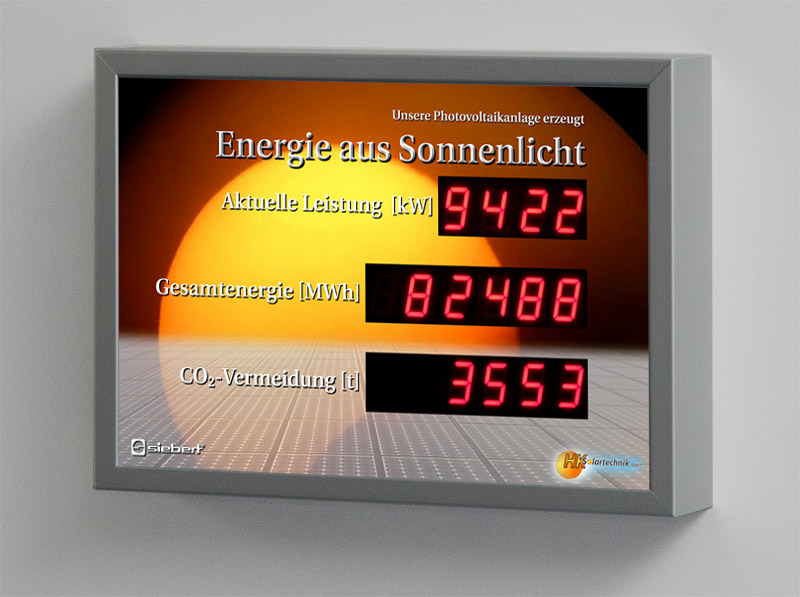

Different graphic designs

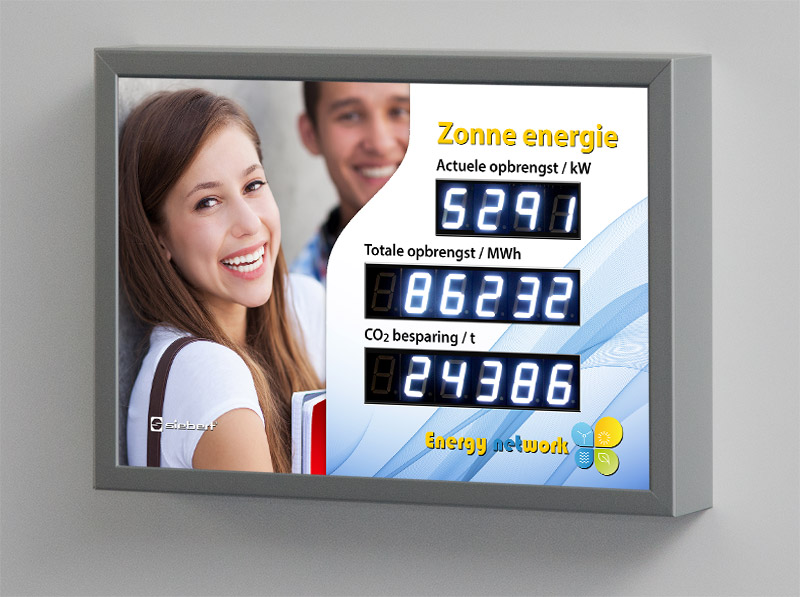

It’s also possible to integrate a logo of the investor, the planner, the sponsors or a photo of the building into the graphics.
Individually designed graphics are also possible. For this, our own design studio is your competent partner.

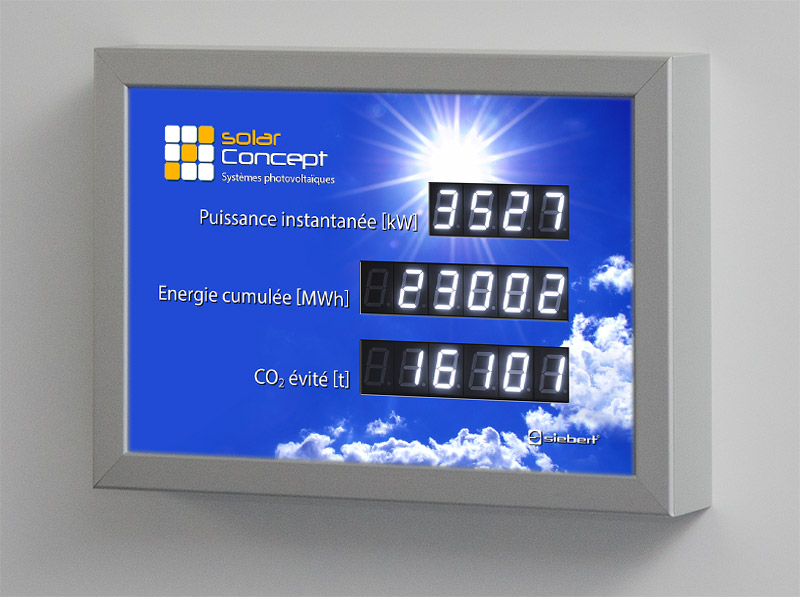

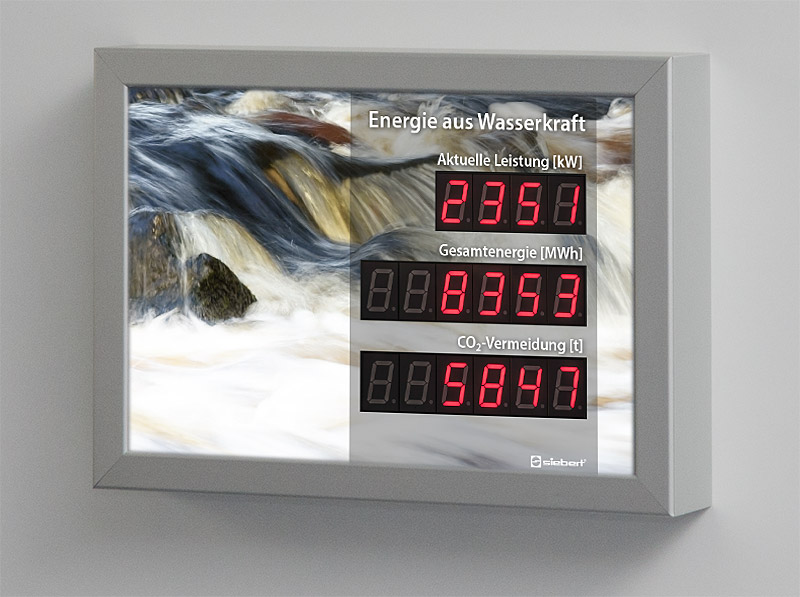

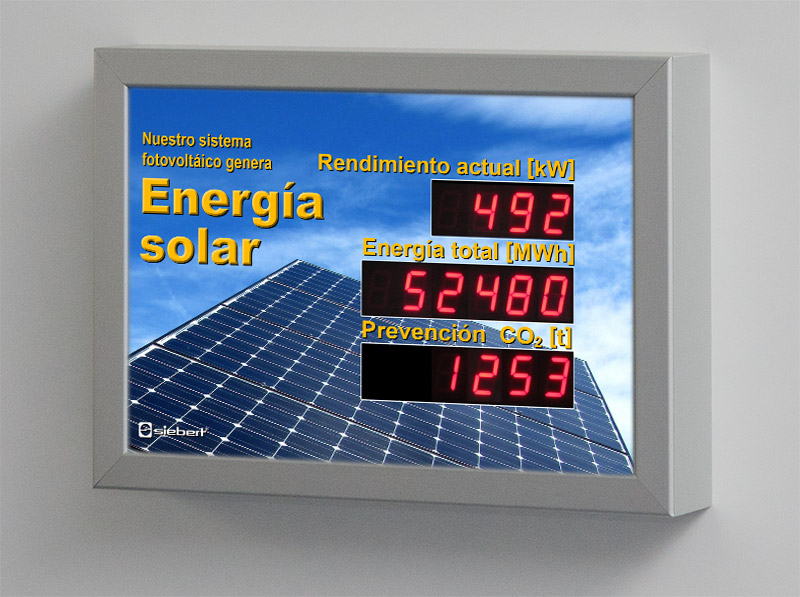

Examples



Labeling variants

You can choose between six labeling variants.

Bez.

EN1

EN2

EN3

EN4

EN5

EN6

Line 1

Current performance in W

Current performance in kW

Current performance in W

Current performance in kW

Current performance in kW

Current performance in kW

Line 2

Total energy in kWh

Total energy in MWh

Daily energy in kWh

Daily energy in kWh

Total energy in kWh

Daily energy in kWh

Line 3

CO₂ reduction in kg

CO₂ reduction in t

Total energy in kWh

Total energy in MWh

CO₂ reduction in kg

Total energy in kWh



  • Type code
  • LED display character height
  • LED color
  • Upper LED display
  • Middle LED display
  • Lower LED display
  • Measures W x H x D
  • Material

  • Power supply
  • Power consumption
  • Protection type
  • Weight

  • XC420-SAR-N-03
  • 25 mm
  • red
  • 4 digits
  • 6 digits
  • 6 digits
  • 400 x 280 x 62 mm

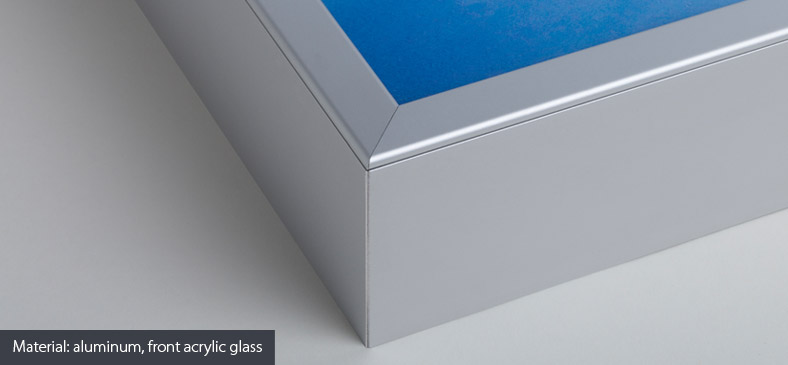

  • aluminum,
    front acrylic glass
  • 100...240V AC, 50...60Hz
  • 25W max.
  • IP40 (IP54)
  • approx. 3 kg

Values in ( ) brackets are valid for devices with optional equipment package for outdoor use.

Data interface

  • S0 pulse, Serial RS485, USB-C
  • Ethernet
  • WLAN Bridge   Logo Wifi



  • XC420-xxx-x-03
  • XC420-xxx-x-05
  • XC420-xxx-x-xx-18x1

LED color

  • red
  • white



  • XC420-xxR-x-xx
  • XC420-xxW-x-xx

Options

  • Equipment package for outdoor use
  • WLAN Bridge with multiple receivers
  • Individual foil design



  • XC420-xxx-A-xx
  • XC420-xxx-x-xx-18xx
  • XC420-xxx-x-xx-S99xxx
