Digitalanzeigen für die Photovoltaik

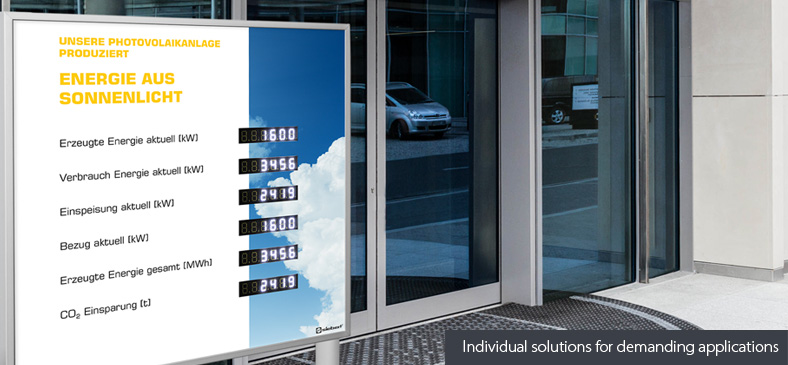

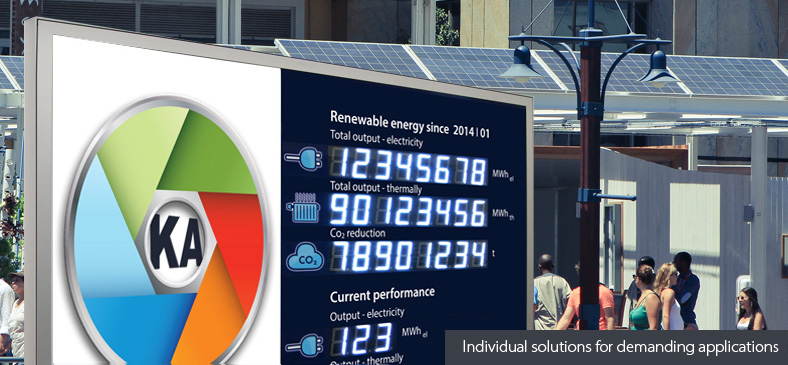

Individuelle Lösungen für anspruchsvolle Anwendungen

XC-Boards® sind individuell gestaltete Anzeigesysteme – von kompakten Geräten bis hin zu grossformatigen Anzeigeboards für Ableseentfernungen bis zu 300 m.

Informationsdarstellung

Für die Photovoltaik
Für die Windenergie
Für die Thermische Energie
Für die Energiegewinnung aus Biogasanlagen
Für die Gebäudetechnik

XC-Boards® basieren auf bewahrten Komponenten der Seriengeräte und werden in Abstimmung mit dem Kunden projektiert. Weitreichende Erfahrung in der Konzeption digitaler Anzeigesysteme führt zu professionellen Lösungen, die sich im weltweiten Einsatz bewähren.

Beispiele individueller Graphikmotive

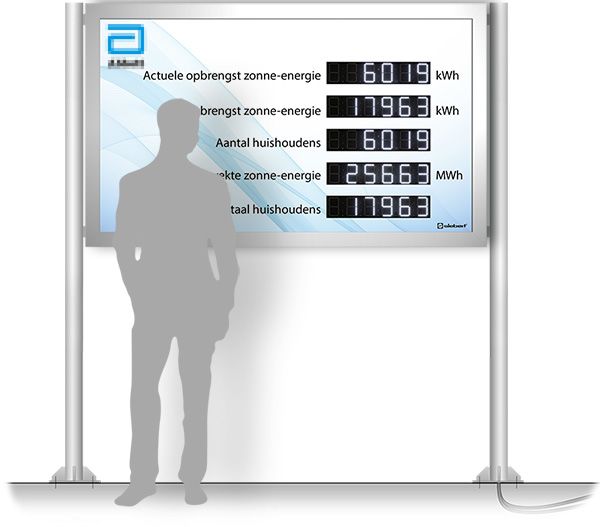

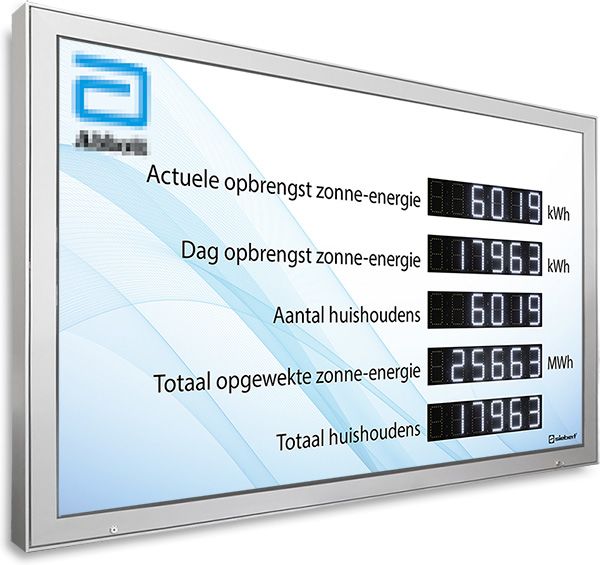

XC-Board® 0414.741
DISPLAY: 100 mm LED white
MEASURES (W x H x D): 2150 x 1300 x 110 mm
FEATURES: stand-foot-system, climate compensation, integrated heating
THE NETHERLANDS

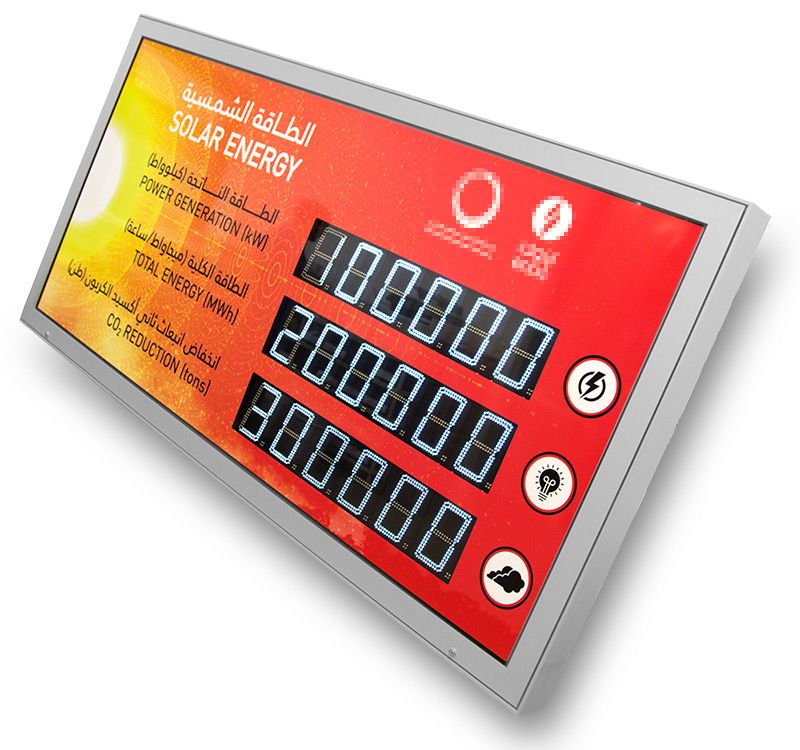

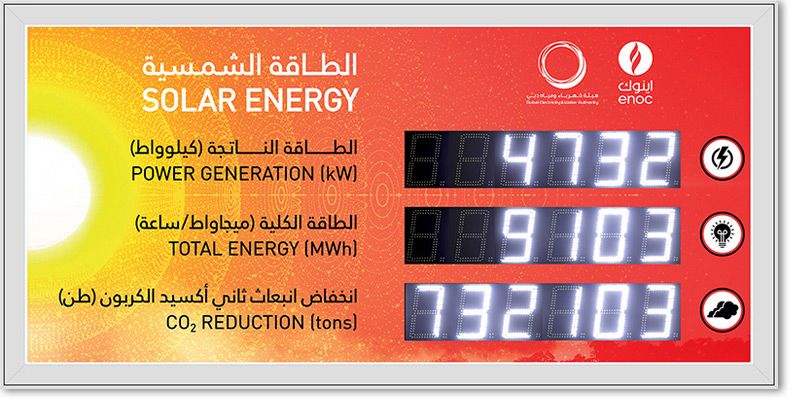

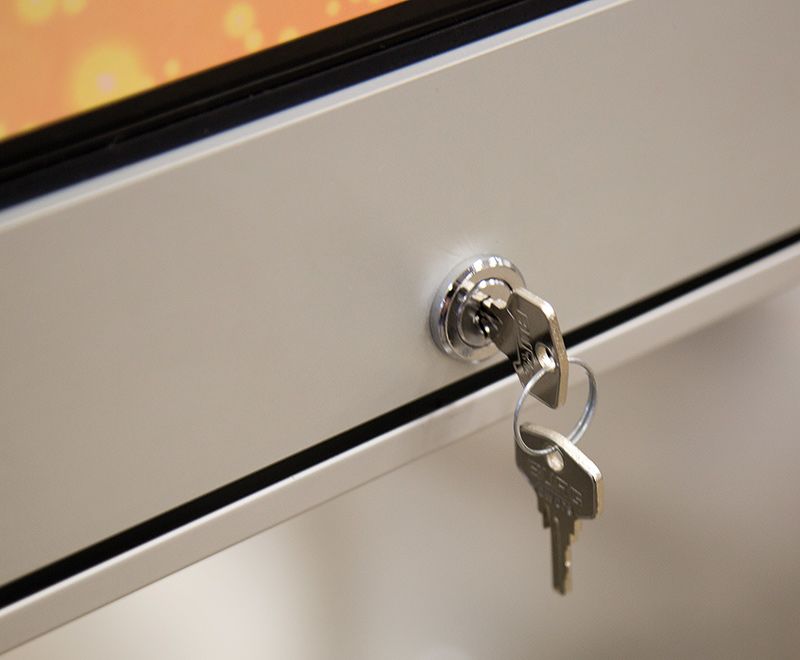

XC-Board® 0413.759
DISPLAY: 160 mm LED white extra bright
MEASURES (W x H x D): 2400 x 1200 x 110 mm
FEATURES: SMA Inverter Manager, climate compensation, integrated heating
UNITED ARAB EMIRATES

XC-Board® 0410.822
DISPLAY: 100 mm LED white, Textdisplay: 240 x 16 Pix LED white, 50/100/120 mm switchable
MEASURES (W x H x D): 2150 x 1300 x 110 mm
AUSTRIA

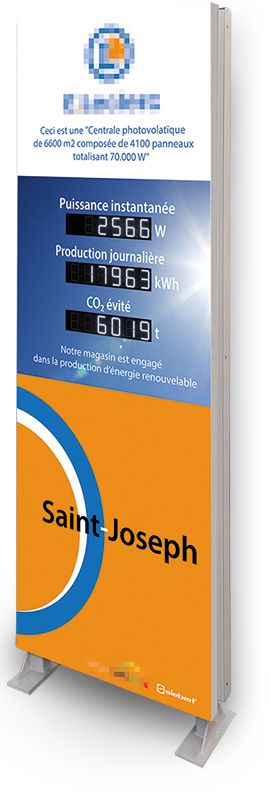

XC-Board® / Steele
DISPLAY: 55 mm LED white (alternative red)
MEASURES (W x H x D): 1250 x 3500 mm (alternatively also in 1250 x 2500 mm)
LA REUNION (FRANCE)

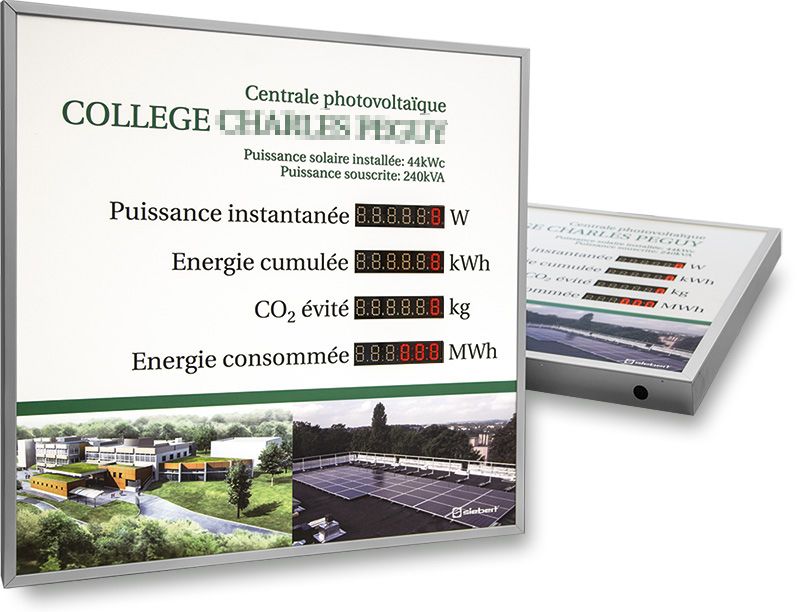

XC-Board® 0412.213-001
DISPLAY: 25 mm LED red
MEASURES (W x H x D): 800 x 800 x 62 mm
FEATURES: Climate compensation, 2 pieces - slave function RS485
FRANCE

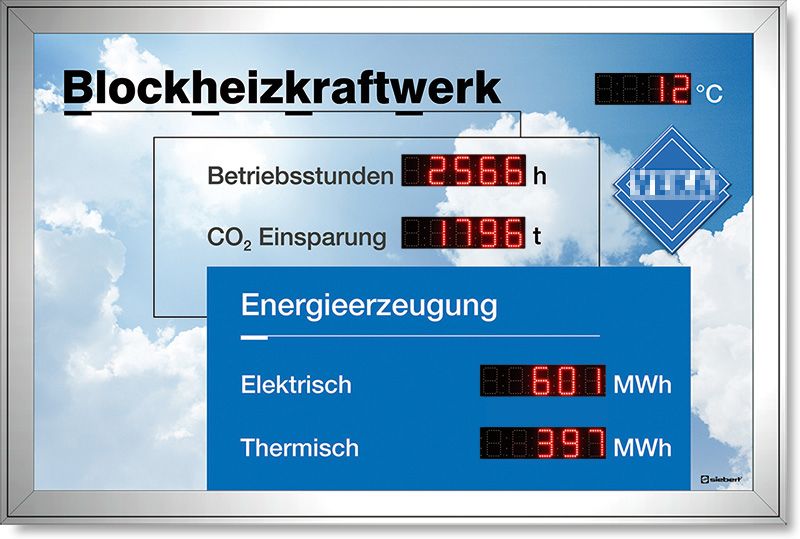

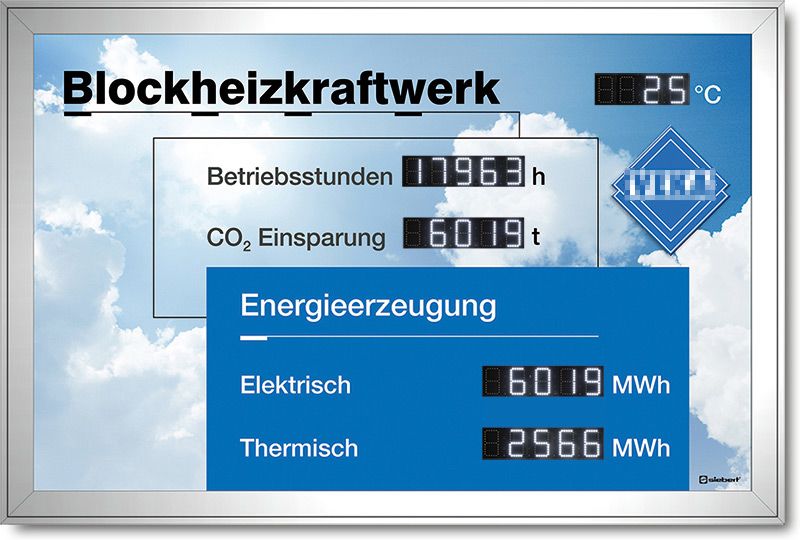

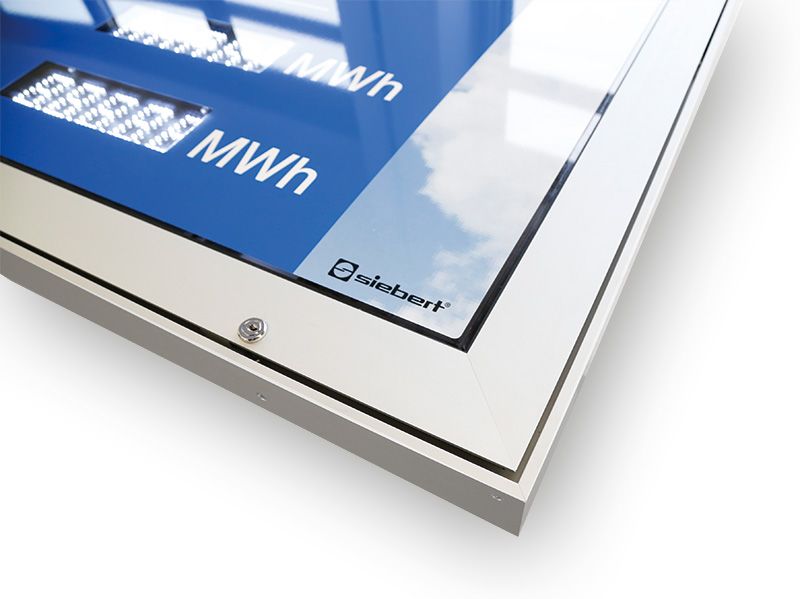

XC-Board® 413.769
DISPLAY: 55 mm LED white (alternatively also in red)
MEASURES (W x H x D): 1800 x 1200 x 110 mm
FEATURES: Ethernet TCP-IP, climate compensation
GERMANY

XC-Board® 0413.552
DISPLAY: 160 mm LED white, extra bright
MEASURES (W x H x D): 2000 x 1200 x 110 mm
GERMANY

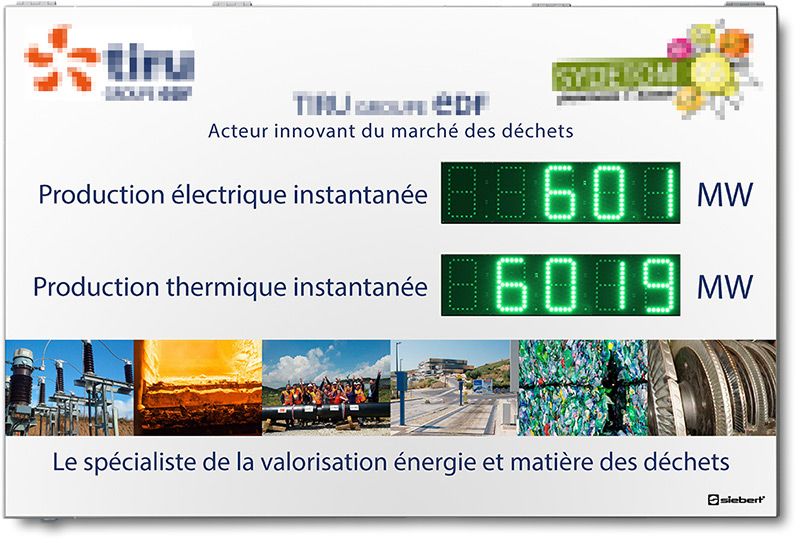

XC-Board® 0417.092
DISPLAY: 100 mm LED green, extra bright
MEASURES (W x H x D): 1500 x 1000 x 110 mm
FEATURES: Robust steel sheet housing
FRANCE

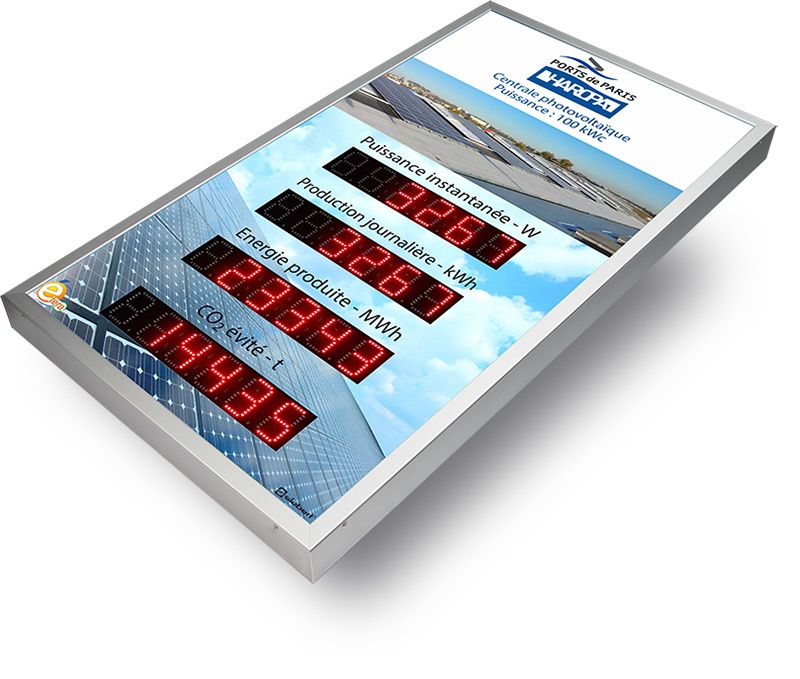

XC-Board® 0415.961
DISPLAY: 55 mm SMD-LED red
MEASURES (W x H x D): 560 x 1000 x 62 mm
FEATURES: Automatic brightness control
FRANCE

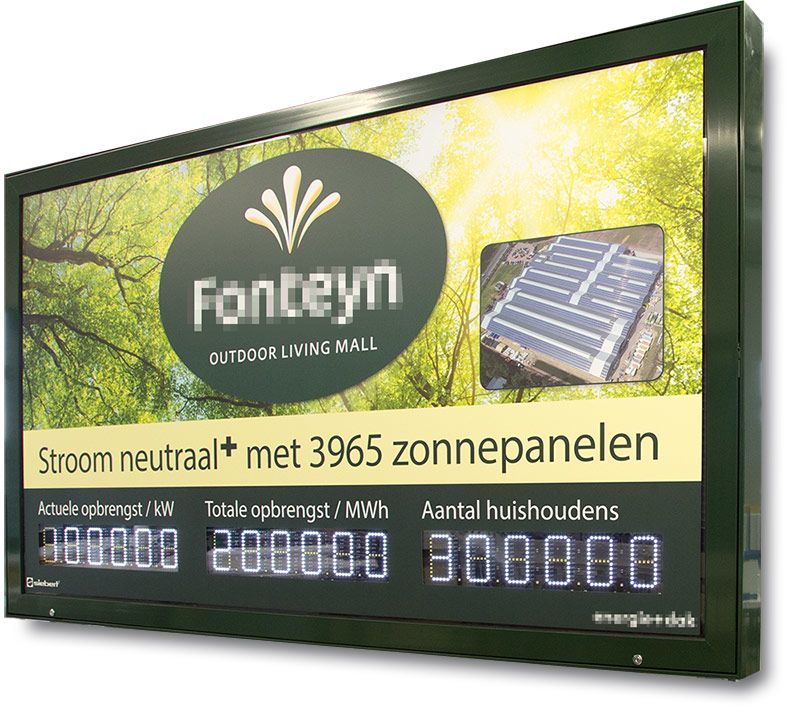

XC-Board® 0416.127
DISPLAY: 100 mm LED white
MEASURES (W x H x D): 2200 x 1300 x 110 mm
FEATURES: Profinet IO, housing completly painted
THE NETHERLANDS

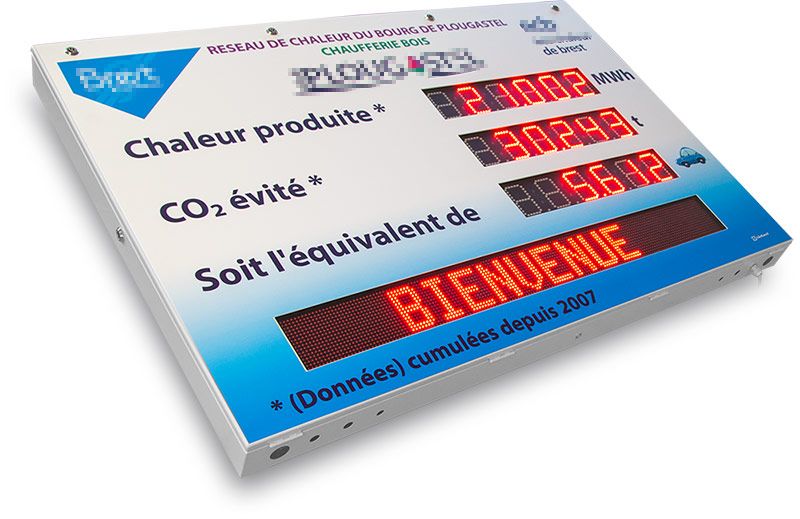

XC-Board® 415.970
DISPLAY: 100 mm LED red, textdisplay: LED red, 50/100/120 mm switchable
MEASURES (W x H x D): 1600 x 1100 x 110 mm
FEATURES: Interface/numeric: Modbus TCP, interface/alphanumeric: Ethernet TCP/IP, housing V4A stainless steel, painted, heating installed and climate compensation
FRANCE

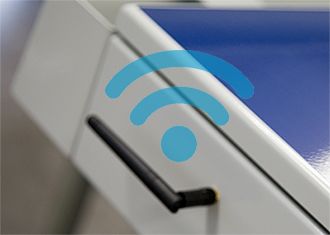

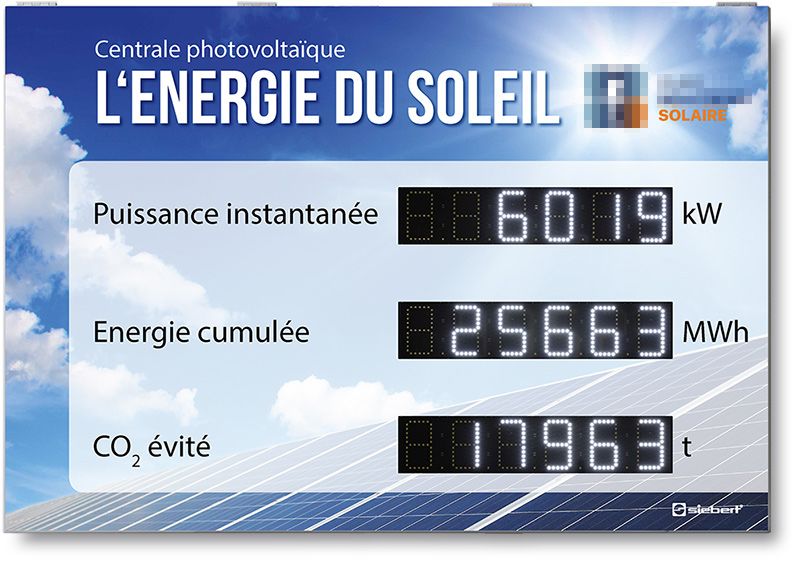

XC-Board® 0417.133
DISPLAY: 100 mm LED white
MEASURES (W x H x D): 1600 x 1100 x 110 mm
FEATURES: Data transmission via radio signals, robust steel sheet housing
FRANCE

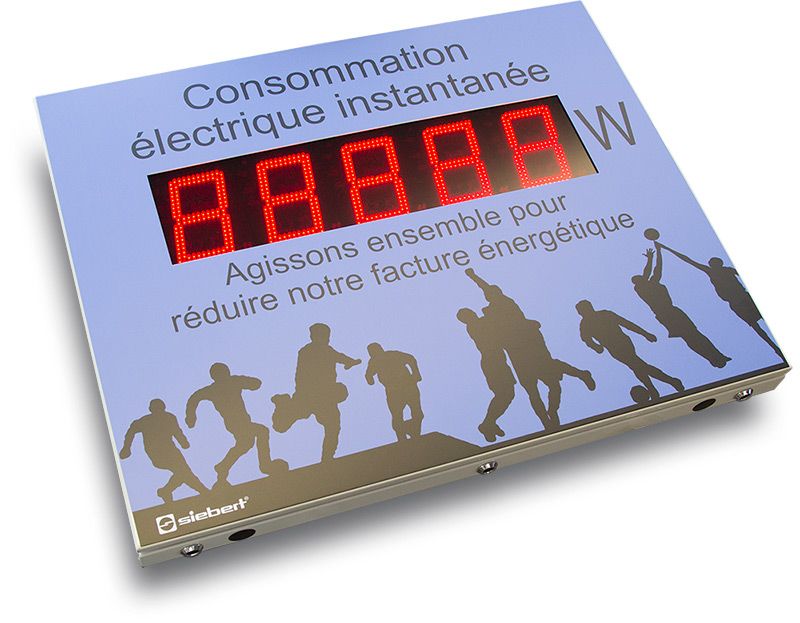

XC-Board® 0417.077
DISPLAY: 160 mm LED red
MEASURES (W x H x D): 1000 x 800 x 70 mm
FEATURES: Robust steel sheet housing, climate control
FRANCE

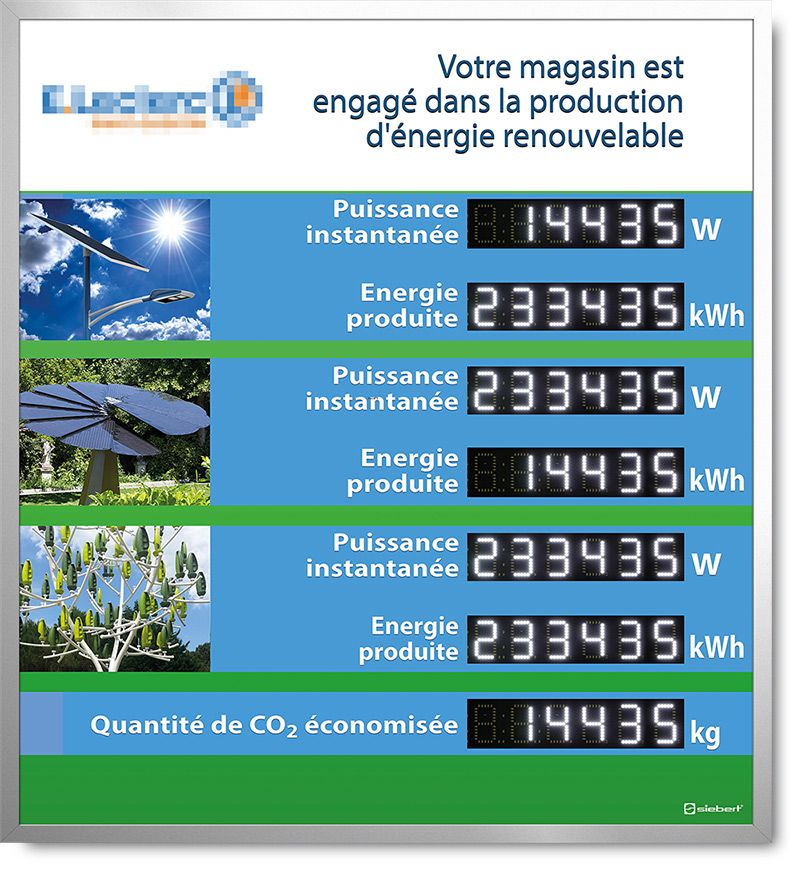

XC-Board® 0415.756
DISPLAY: 55 mm SMD-LED white
MEASURES (W x H x D): 1200 x 1100 x 62 mm
FEATURES: Ethernet, climate compensation
FRANCE

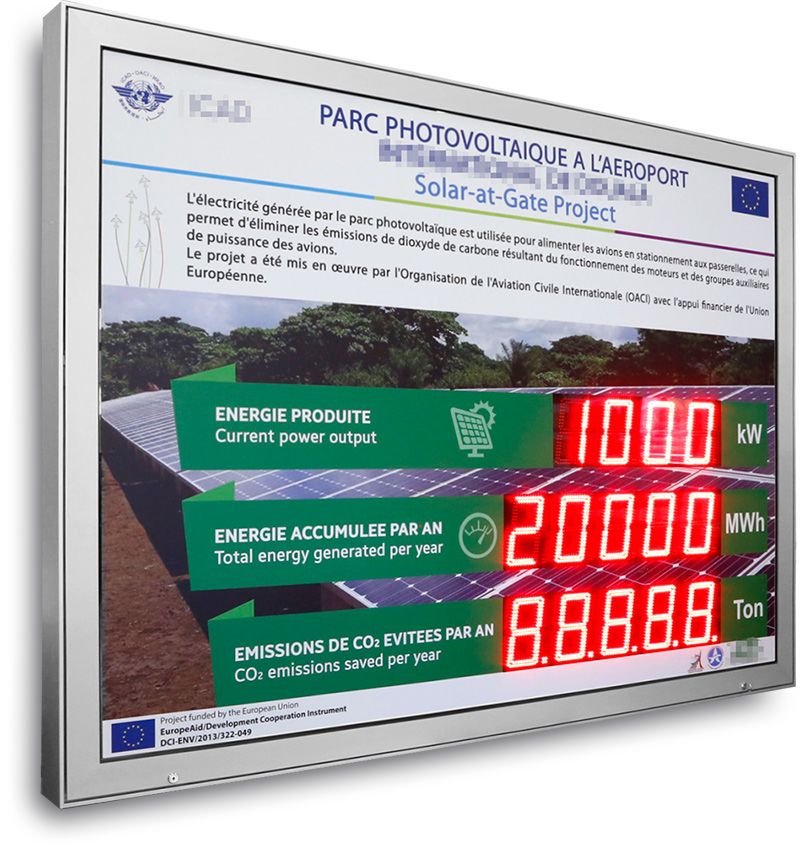

XC-Board® 0416.487
DISPLAY: 160 mm LED red extra bright
MEASURES (W x H x D): 2000 x 1500 x 110 mm
FEATURES: Ethernet TPC, climate compensation, integrated heating
CAMEROON
