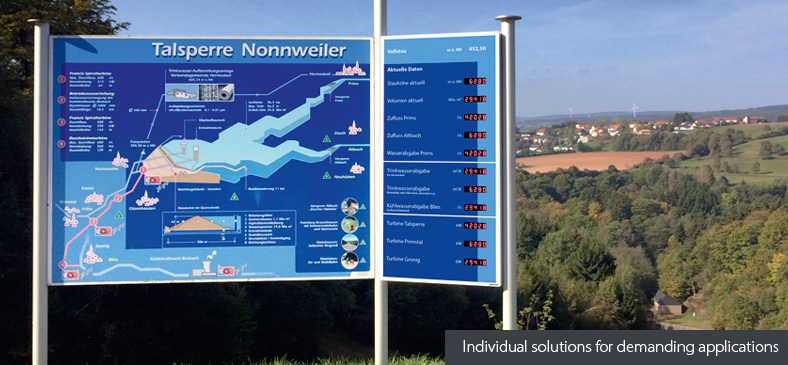

Soluzioni personalizzate per applicazioni sofisticate

XC-Boards® sono sistemi di visualizzazione personalizzati che vanno dai dispositivi compatti ai pannelli di visualizzazione large size per distanze di lettura fino a 300 m.

Presentazione delle informazioni

Per il fotovoltaico
Per l’energia eolica
Per l’energia termica
Per la produzione di energia tramite impianti di biogas
Per la tecnologia per l’edilizia

Gli XC-Boards® si basano sui componenti della gamma di serie e vengono progettati in accordo con il cliente. Un’ampia esperienza nella progettazione di sistemi di visualizzazione digitale si traduce in soluzioni professionali che danno buoni risultati a livello mondiale.

Esmpi di grafica personalizzata

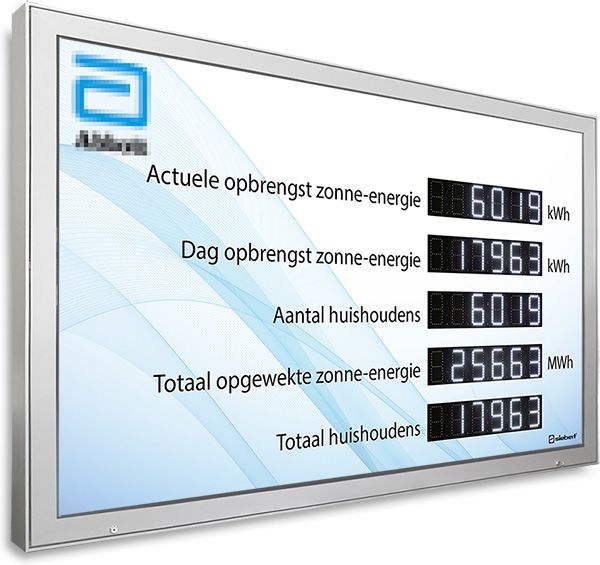

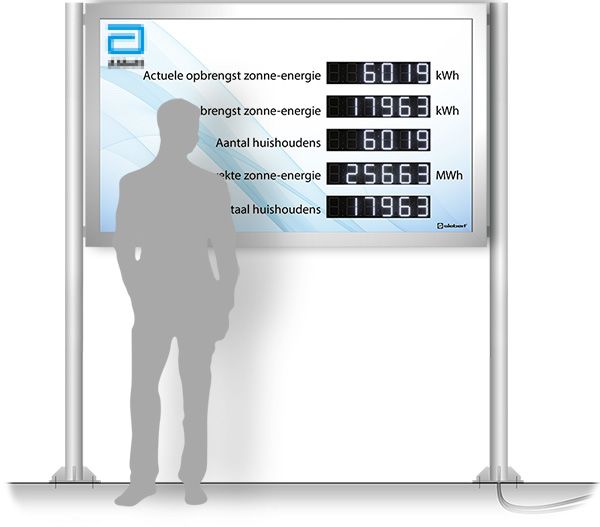

XC-Board® 0414.741
DISPLAY: 100 mm LED white
MEASURES (W x H x D): 2150 x 1300 x 110 mm
FEATURES: stand-foot-system, climate compensation, integrated heating
THE NETHERLANDS

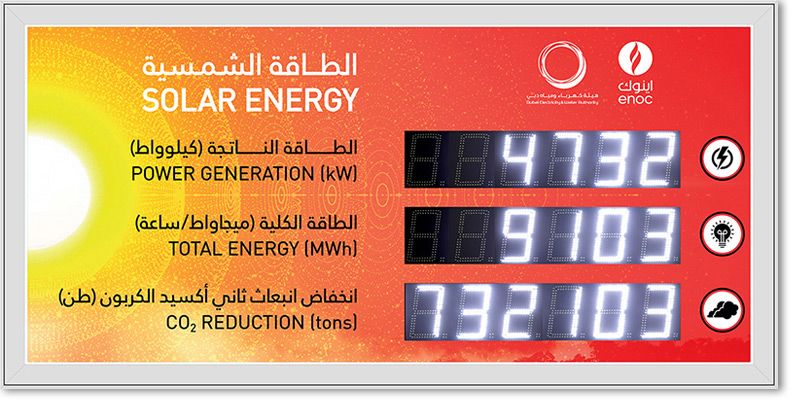

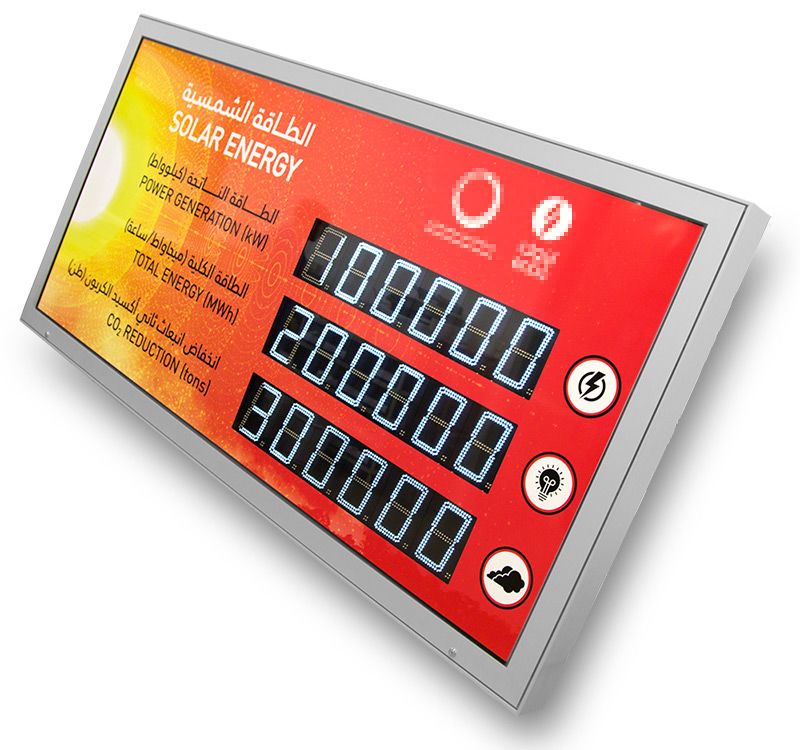

XC-Board® 0413.759
DISPLAY: 160 mm LED white extra bright
MEASURES (W x H x D): 2400 x 1200 x 110 mm
FEATURES: SMA Inverter Manager, climate compensation, integrated heating
UNITED ARAB EMIRATES

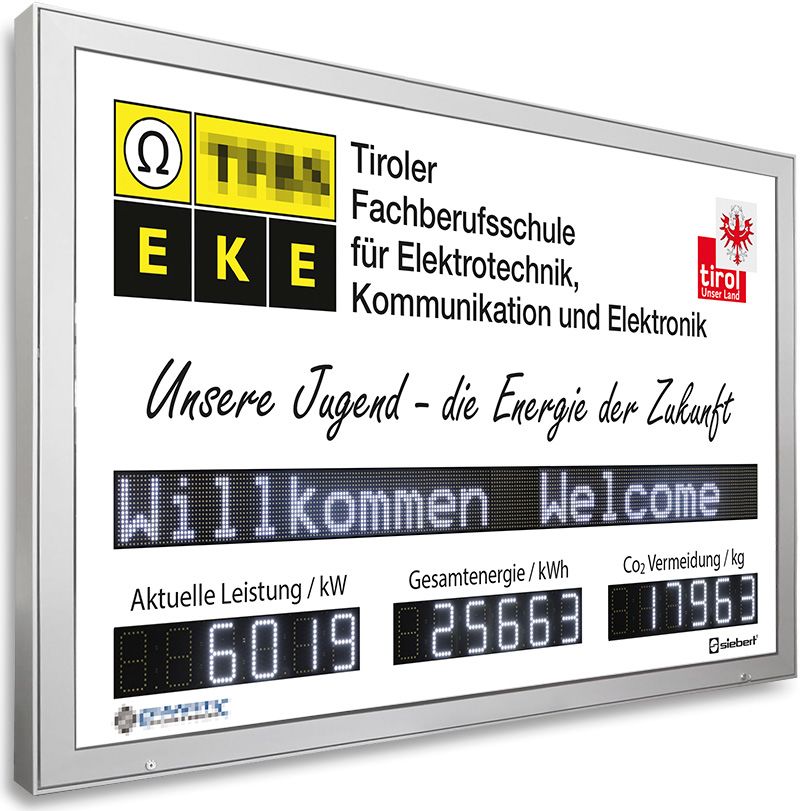

XC-Board® 0410.822
DISPLAY: 100 mm LED white, Textdisplay: 240 x 16 Pix LED white, 50/100/120 mm switchable
MEASURES (W x H x D): 2150 x 1300 x 110 mm
AUSTRIA

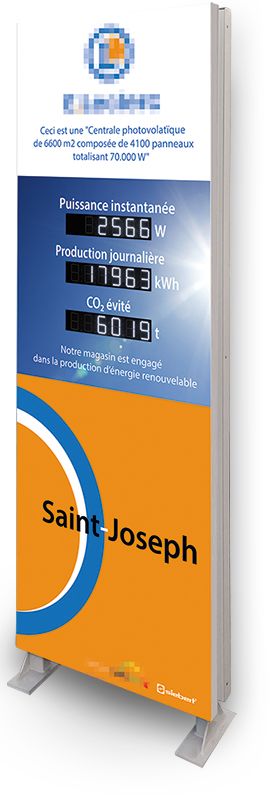

XC-Board® / Steele
DISPLAY: 55 mm LED white (alternative red)
MEASURES (W x H x D): 1250 x 3500 mm (alternatively also in 1250 x 2500 mm)
LA REUNION (FRANCE)

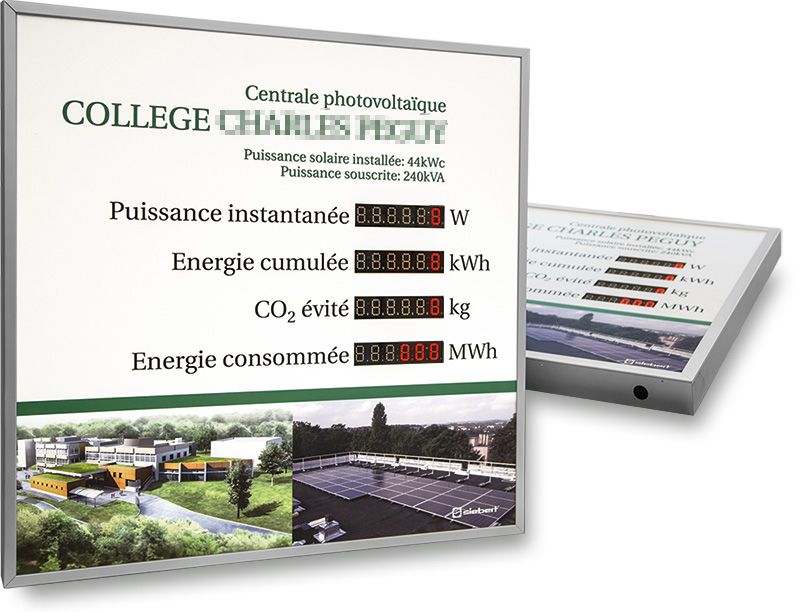

XC-Board® 0412.213-001
DISPLAY: 25 mm LED red
MEASURES (W x H x D): 800 x 800 x 62 mm
FEATURES: Climate compensation, 2 pieces - slave function RS485
FRANCE

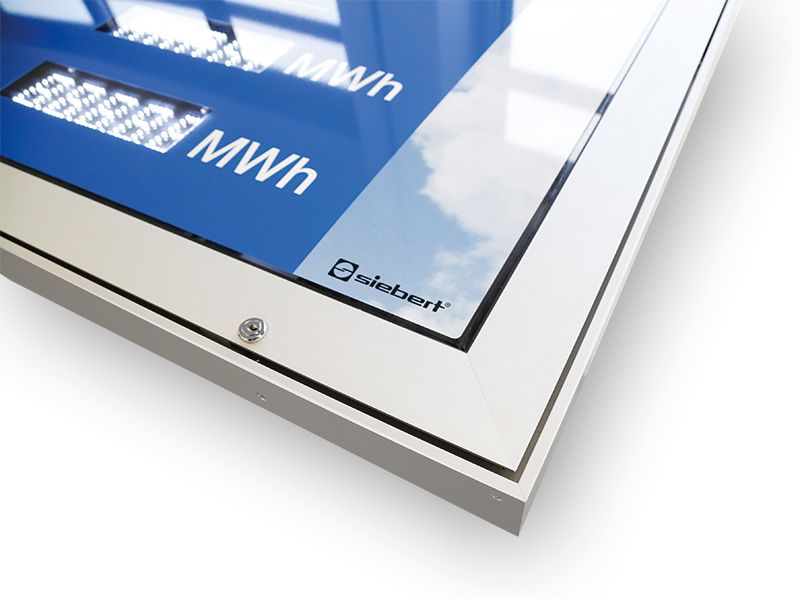

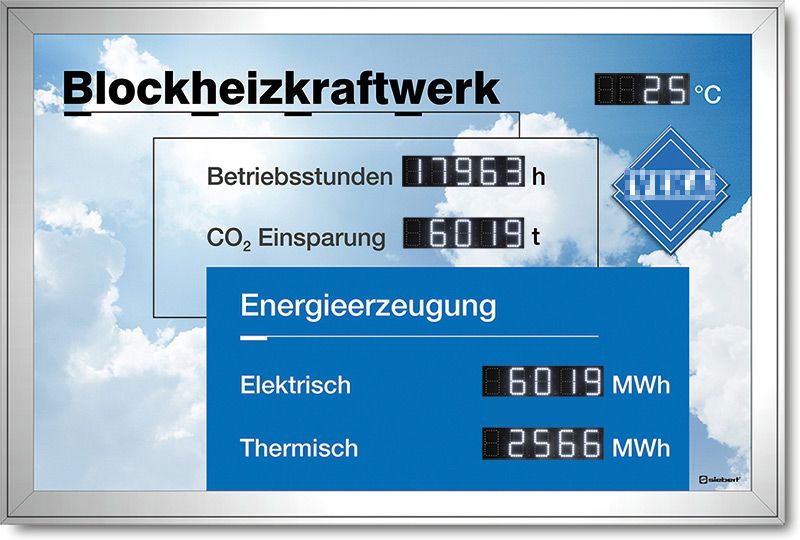

XC-Board® 413.769
DISPLAY: 55 mm LED white (alternatively also in red)
MEASURES (W x H x D): 1800 x 1200 x 110 mm
FEATURES: Ethernet TCP-IP, climate compensation
GERMANY

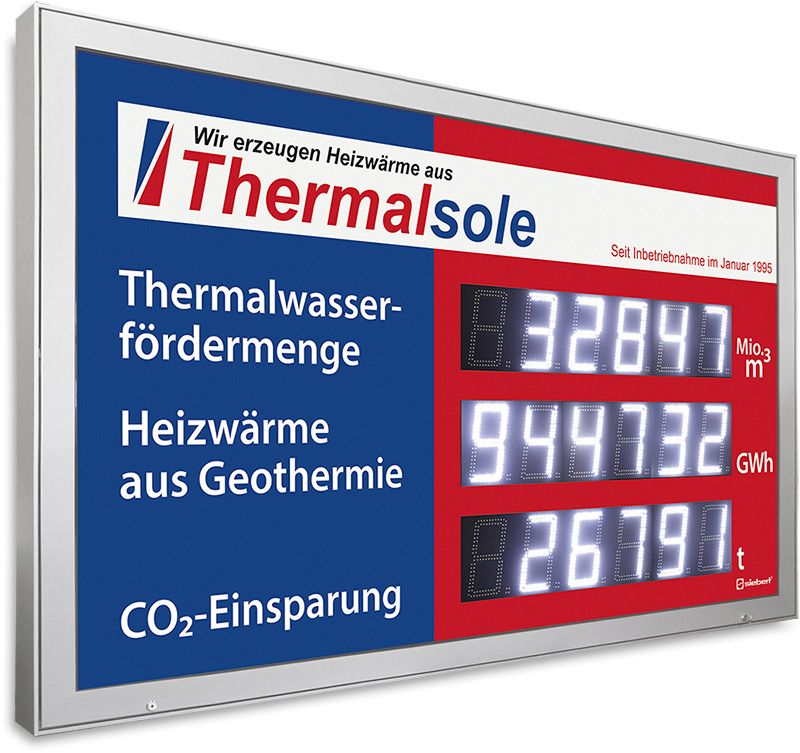

XC-Board® 0413.552
DISPLAY: 160 mm LED white, extra bright
MEASURES (W x H x D): 2000 x 1200 x 110 mm
GERMANY

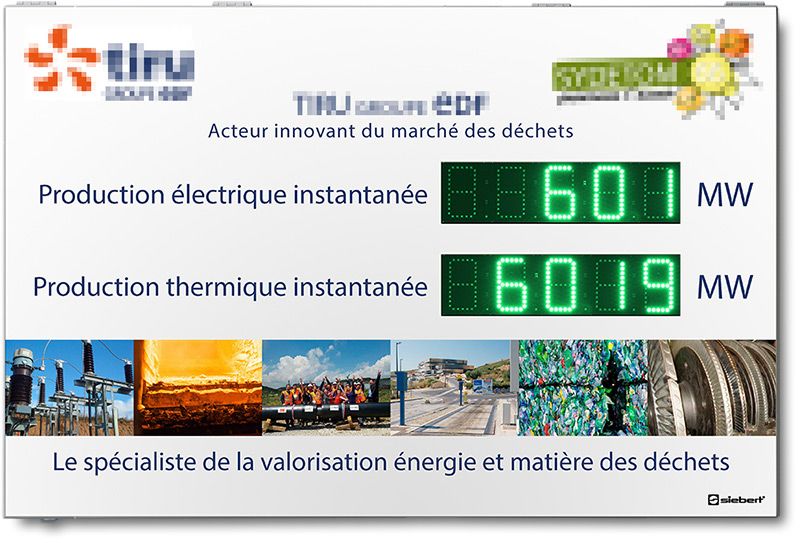

XC-Board® 0417.092
DISPLAY: 100 mm LED green, extra bright
MEASURES (W x H x D): 1500 x 1000 x 110 mm
FEATURES: Robust steel sheet housing
FRANCE

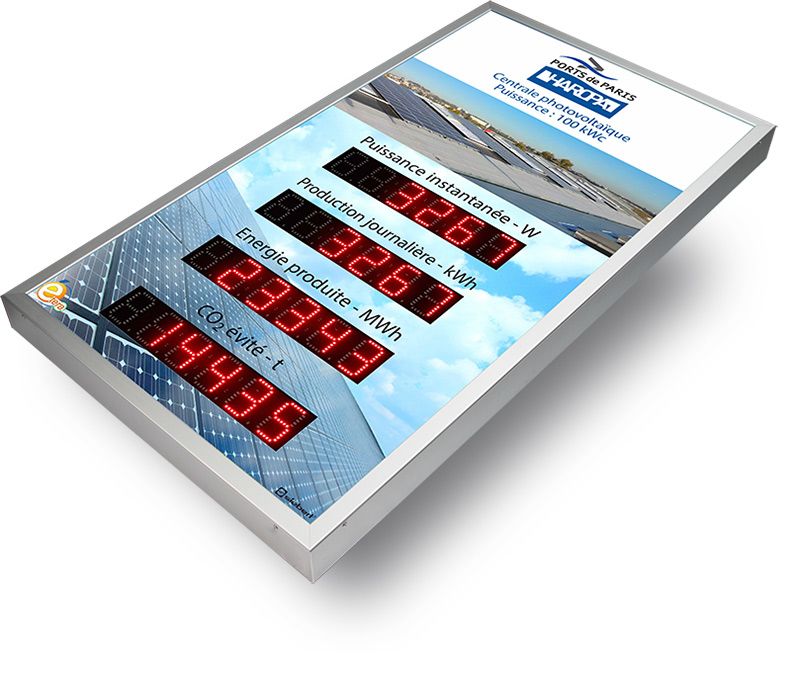

XC-Board® 0415.961
DISPLAY: 55 mm SMD-LED red
MEASURES (W x H x D): 560 x 1000 x 62 mm
FEATURES: Automatic brightness control
FRANCE

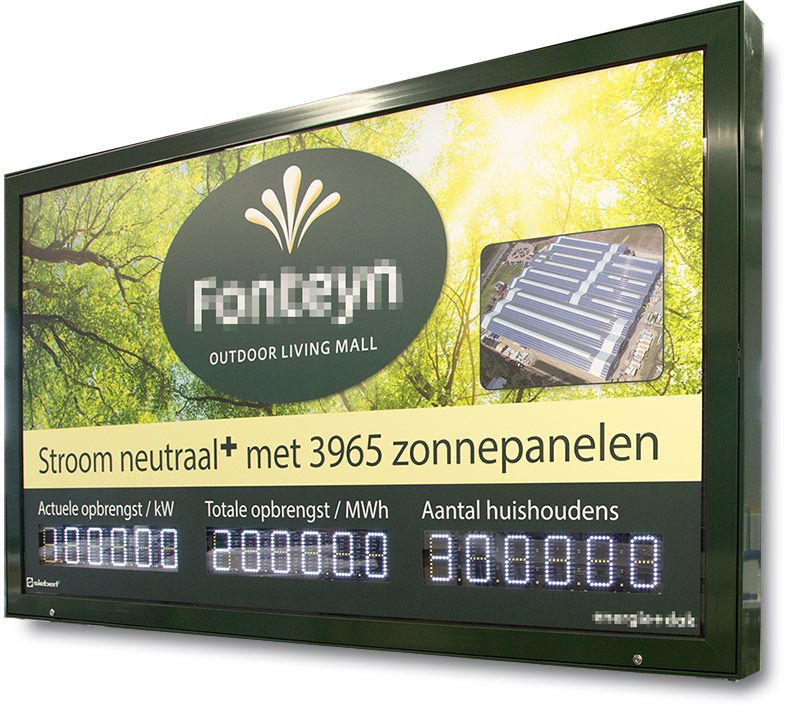

XC-Board® 0416.127
DISPLAY: 100 mm LED white
MEASURES (W x H x D): 2200 x 1300 x 110 mm
FEATURES: Profinet IO, housing completly painted
THE NETHERLANDS

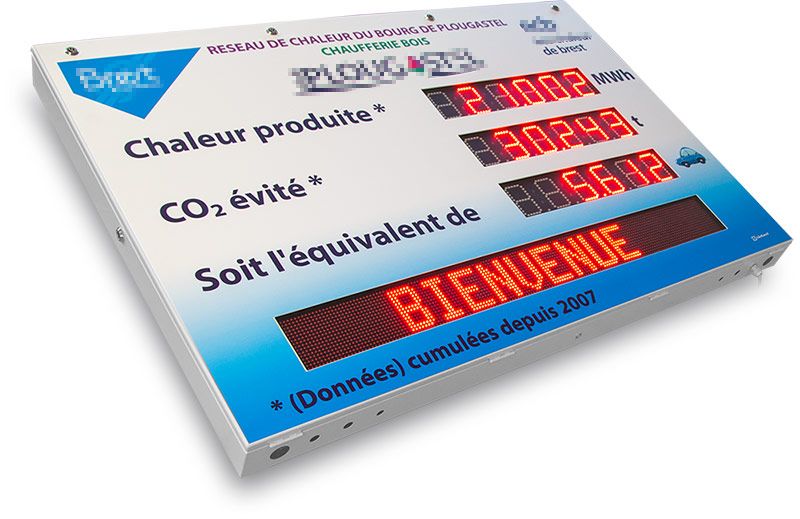

XC-Board® 415.970
DISPLAY: 100 mm LED red, textdisplay: LED red, 50/100/120 mm switchable
MEASURES (W x H x D): 1600 x 1100 x 110 mm
FEATURES: Interface/numeric: Modbus TCP, interface/alphanumeric: Ethernet TCP/IP, housing V4A stainless steel, painted, heating installed and climate compensation
FRANCE

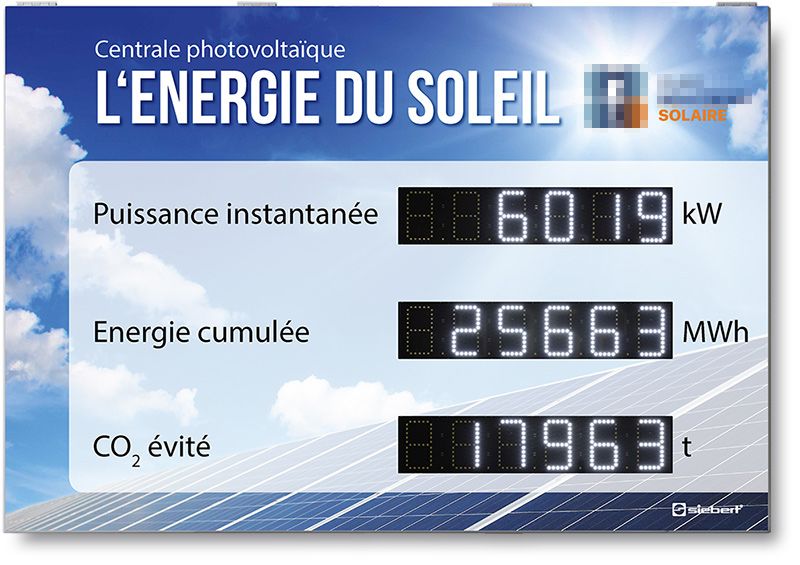

XC-Board® 0417.133
DISPLAY: 100 mm LED white
MEASURES (W x H x D): 1600 x 1100 x 110 mm
FEATURES: Data transmission via radio signals, robust steel sheet housing
FRANCE

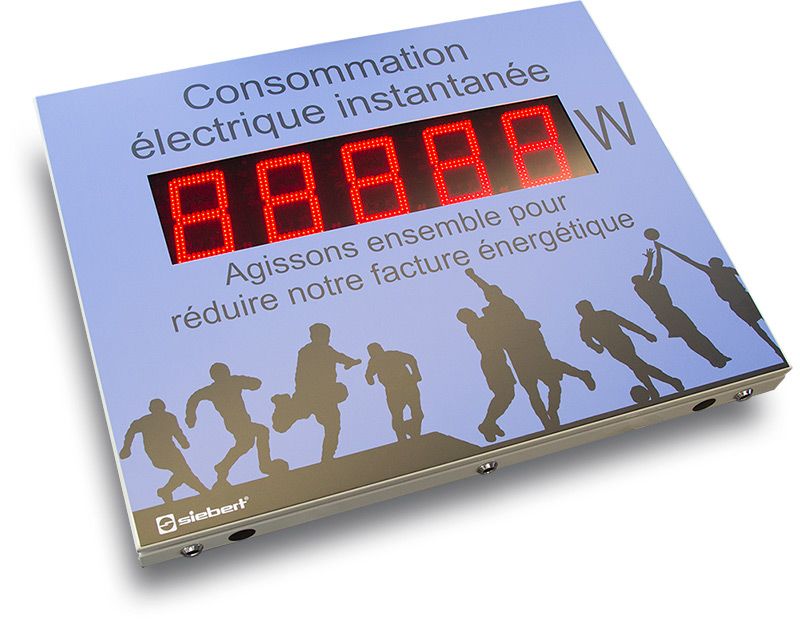

XC-Board® 0417.077
DISPLAY: 160 mm LED red
MEASURES (W x H x D): 1000 x 800 x 70 mm
FEATURES: Robust steel sheet housing, climate control
FRANCE

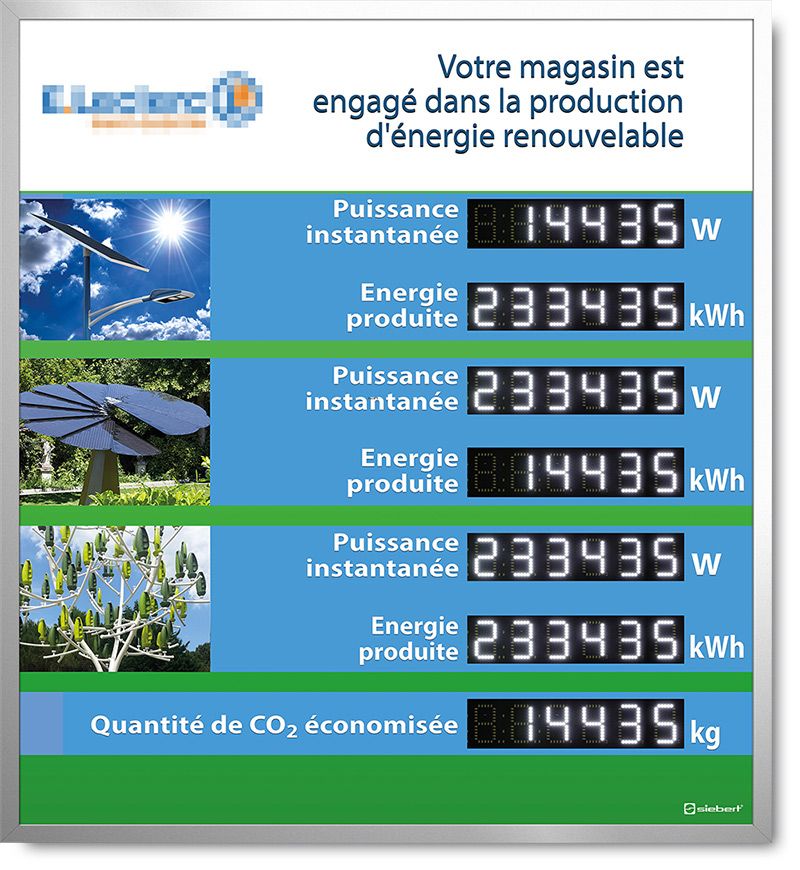

XC-Board® 0415.756
DISPLAY: 55 mm SMD-LED white
MEASURES (W x H x D): 1200 x 1100 x 62 mm
FEATURES: Ethernet, climate compensation
FRANCE

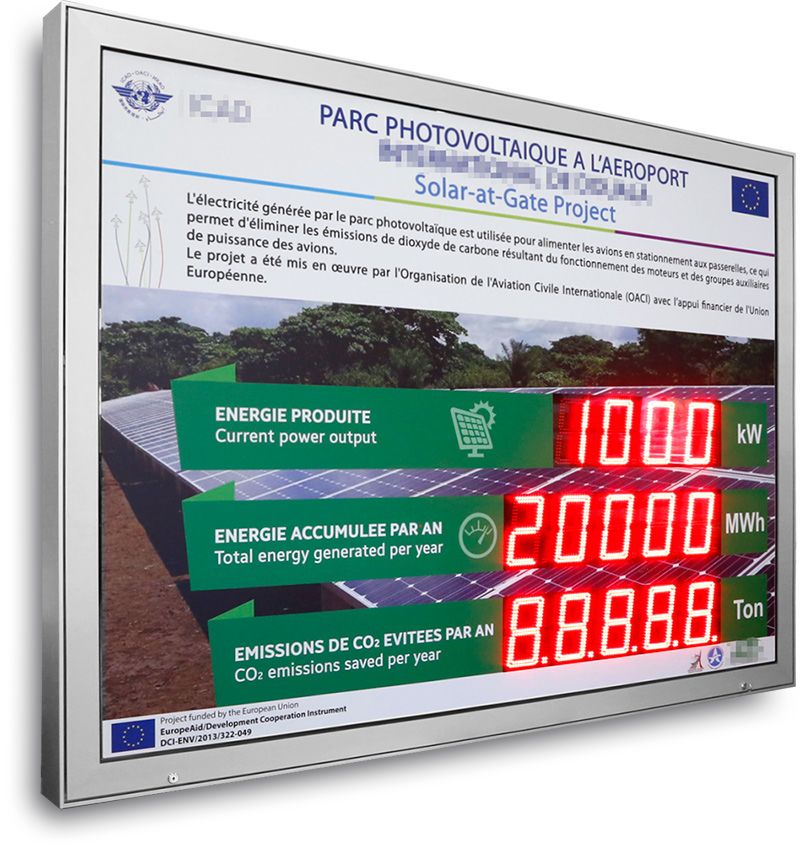

XC-Board® 0416.487
DISPLAY: 160 mm LED red extra bright
MEASURES (W x H x D): 2000 x 1500 x 110 mm
FEATURES: Ethernet TPC, climate compensation, integrated heating
CAMEROON
